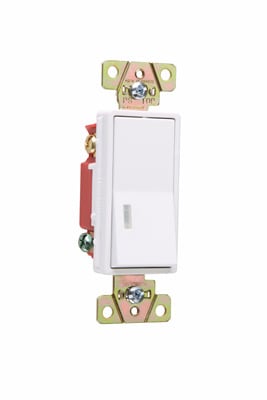

Pass & Seymour / Legrand - Pass & Seymour 2626-W Three-way, Back and Side Wire, Illuminated Decorator Switch, 20 amps, 120V - White
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007539851
Actuator - Paddle, Rocker/Button
Amperage - 20 Amp
Applications - Industrial
Catalog Number - 2626W
Packaging
1 ea
EAN
00785007539851
Part #
268147
Catalog #
2626-W
Commercial reference
2626-W
12-Digit UPC:
785007539851
Actuator:
Paddle, Rocker/Button
Amperage:
20 Amp
Applications:
Industrial
Catalog Number:
2626W
Color:
White
Country of Origin:
Mexico
Depths:
1.06 Inch
ERP_productname:
PASS 2626-W SW DEC 3W ILL 20A 120V GROUNDED W
Family Brand Name:
Pass & Seymour
Finish:
Matte
Heights:
4.2 Inch
Material:
Thermoplastic
Number of Poles:
1 Pole
Size:
4.25"
Sub Brand:
Pass & Seymour
Type:
3-Way
Voltage:
120 Volt
Wattage:
3 Watt
Widths:
1.3 in
SoneparProductId:
SKU_US_57828769
Three-way, Back and Side Wire, Illuminated Decorator Switch, 20 amps, 120 volts, Ivory. Features: Impact-resistant polycarb back body and frame.; Cushioned thermoplastic paddle assures smooth, quiet, long term operation.; Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.; Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.; Terminals made of high conductivity brass and serrated for maximum wire gripping.; Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.; Integral auto-ground clip for positive ground to metal boxes.; Tri-drive ground, terminal, and mounting screws.; All terminal screws backed out, ready-to-install.; For covering patents, see www.legrand.us/patents. - Certifications: cULus Listed; UL Listed; CSA Listed
