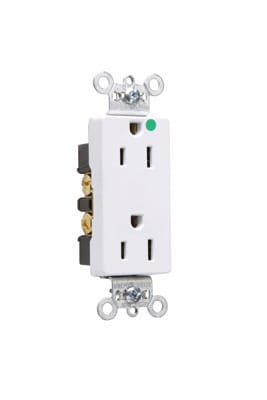

Pass & Seymour / Legrand - Pass & Seymour 26262-HGW Heavy-Duty Decorator Hospital Grade Duplex Receptacle, Back & Side Wire, 15A 125V - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007784817

  • Amperage - 15 Amp

  • Applications - Commercial Grade

  • Catalog Number - 26262HGW

  • Color - White

Packaging

  • 1 ea

EAN

00785007784817

Part #

129279

Catalog #

26262-HGW

Commercial reference

26262-HGW

12-Digit UPC:

785007784817

Amperage:

15 Amp

Applications:

Commercial Grade

Catalog Number:

26262HGW

Color:

White

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

0.833 Inch

ERP_productname:

PASS 26262-HGW RECEPT DUP SPLEX 15A125V HOSP GRD

Family Brand Name:

Pass & Seymour

Finish:

Gloss

Grade:

Hospital

Heights:

2.635 Inch

Material:

Nylon

Mounting Type:

Wall, Flush

NEMA:

5-15R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.322 L x .833 W x 3.813 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Type:

Decorator, Heavy Duty

Voltage:

125 Volt

Widths:

1.322 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_58055630

Heavy-Duty Decorator Hospital Grade Duplex Receptacle Back & Side Wire 15amp 125volt Gray Features: Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.; Rated 15 amperes; Heavy-duty compact design for easier installation and long lasting performance.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; Impact-resistant nylon face.; Terminal compartments isolated from each other for positive conductor containment.; All devices fit standard #26 opening wall plate.; Tri-drive terminal and mounting screws.; Auto-ground clip assures positive ground.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: cULus Listed
