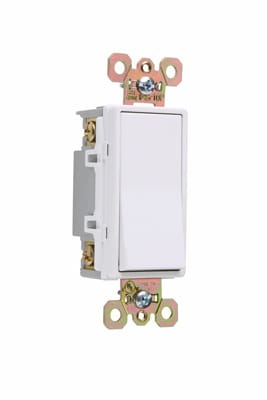

Pass & Seymour / Legrand - Pass & Seymour 2628-W Four-way, Back and Side Wire, Illuminated Decorator Switch, 20 amps, 120V - White
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007859195
Amperage - 20 Amp
Applications - Industrial
Catalog Number - 2628W
Color - White
Packaging
10 ea
EAN
00785007859195
Part #
492879
Catalog #
2628W
Commercial reference
2628W
12-Digit UPC:
785007859195
Amperage:
20 Amp
Applications:
Industrial
Catalog Number:
2628W
Color:
White
Country of Origin:
Mexico
ERP_productname:
PASS 2628W SW DECO 4W ILL 20A 120V GRD WH
Family Brand Name:
Legrand
Finish:
Matte
Material:
Polycarbonate
Number of Poles:
4 Pole
Size:
4.25"
Sub Brand:
Pass & Seymour
Type:
Switch
Voltage:
120 Volt
Wattage:
4 Watt
SoneparProductId:
SKU_US_52888797
Four-way, Back and Side Wire, Illuminated Decorator Switch, 20 amps, 120 volts, White. Features: Impact-resistant polycarb back body and frame.; Cushioned thermoplastic paddle assures smooth, quiet, long term operation.; Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.; Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.; Terminals made of high conductivity brass and serrated for maximum wire gripping.; Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.; Integral auto-ground clip for positive ground to metal boxes.; Tri-drive ground, terminal, and mounting screws.; All terminal screws backed out, ready-to-install.; For covering patents, see www.legrand.us/patents. - Certifications: cULus Listed
