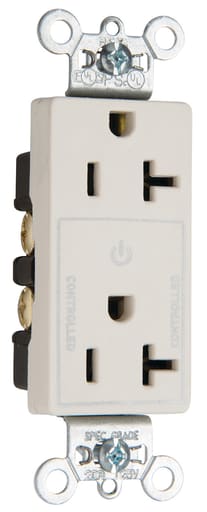

Pass & Seymour / Legrand - Pass & Seymour 26352-CHW 20A 125V Half Controlled Plug Load Duplex Outlet White

CopyCopy
Pass & Seymour / Legrand - Pass & Seymour 26352-CHW 20A 125V Half Controlled Plug Load Duplex Outlet White

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007032758

  • Amperage - 20 Amp

  • Catalog Number - 26352CHW

  • Color - White

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785007032758

Part #

198888

Catalog #

26352CHW

Commercial reference

26352CHW

12-Digit UPC:

785007032758

Amperage:

20 Amp

Catalog Number:

26352CHW

Color:

White

Country of Origin:

Mexico

Depths:

0.78 Inch

ERP_productname:

PASS 26352CHW 20A HALF CONT DECO RECP WH

Family Brand Name:

Legrand

Finish:

Gloss

Grade:

Specification

Heights:

2.635 Inch

Material:

Plastic

Mounting Type:

Flush, Screw

NEMA:

5-20R

Sub Brand:

Pass & Seymour

Type:

Half Controlled, Decorator

Voltage:

125 Volt

Widths:

1.322 in

SoneparProductId:

SKU_US_57844279

This durable, dependable Plug Load receptacle is designed to help you meet ASHRAE energy standards. The controlled marking printed on the tough nylon face is both NEMA-approved and compliant with the National Electrical Code. Features: NEMA approved controlled receptacle marking pad printed on the face of receptacle for superior abrasion resistance.; Can be used to control loads using the Wattstopper DLM system and other building control systems.; Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.; One-piece, brass, triple-wipe power contacts for lasting retention.; Heavy-duty compact design for easier installation and long lasting performance.; Terminal compartments isolated from each other for positive conductor containment.; Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.; All devices fit standard #26 opening wall plate. - Certifications: cULus Listed; Federal Spec Listed
