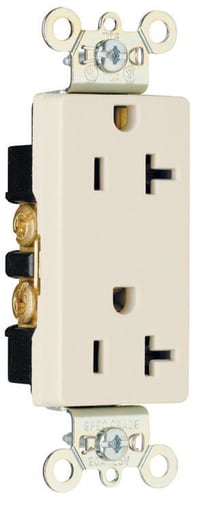

Pass & Seymour / Legrand - Pass & Seymour 26352-LA Heavy-Duty Decorator Spec Grade Duplex Receptacle, Back & Side Wire, 20A 125V - Light Almond

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007785333

  • Amperage - 20 Amp

  • Applications - Commercial

  • Catalog Number - 26352LA

  • Color - Light Almond

Packaging

  • 1 ea

EAN

00785007785333

Part #

178103

Catalog #

26352LA

Commercial reference

26352LA

12-Digit UPC:

785007785333

Amperage:

20 Amp

Applications:

Commercial

Catalog Number:

26352LA

Color:

Light Almond

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

0.78 Inch

ERP_productname:

PASS 26352LA DPLX RCPT 2P20A125V

Family Brand Name:

Pass & Seymour

Finish:

Gloss

Grade:

Specification

Heights:

2.635 Inch

Material:

Nylon

Mounting Type:

Wall, Flush, Screw

NEMA:

5-20R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.322 L x .833 W x 3.813 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Type:

Decorator, Heavy Duty, Halogen-Free

Voltage:

125 Volt

Widths:

1.322 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_26319508

Heavy-Duty Decorator Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Ivory Features: Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.; Heavy-duty compact design for easier installation and long lasting performance.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; Impact-resistant nylon face.; Terminal compartments isolated from each other for positive conductor containment.; All devices fit standard #26 opening wall plate.; Tri-drive terminal and mounting screws.; Auto-ground clip assures positive ground.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: cULus Listed
