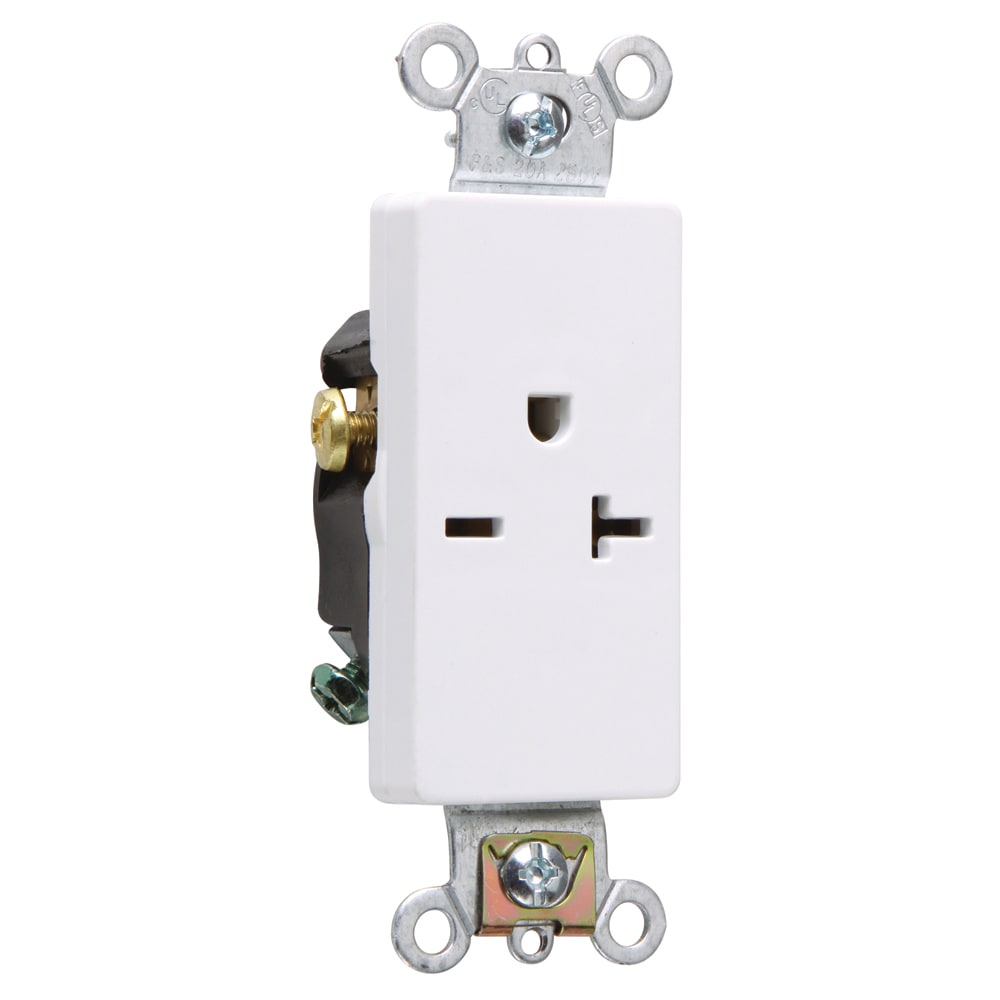

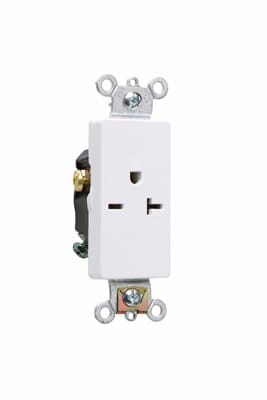

Pass & Seymour / Legrand - Pass & Seymour 26861-W Heavy-Duty Decorator Spec Grade Single Receptacle, Back & Side Wire, 20A 250V - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007786484

  • Amperage - 20 Amp

  • Applications - For Commercial Applications

  • Catalog Number - 26861W

  • Color - White

Packaging

  • 1 ea

EAN

00785007786484

Part #

415191

Catalog #

26861-W

Commercial reference

26861-W

12-Digit UPC:

785007786484

Amperage:

20 Amp

Applications:

For Commercial Applications

Catalog Number:

26861W

Color:

White

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

1.188 Inch

ERP_productname:

PASS 26861-W DECO SINGLE RECP 20A 250V S+B WIRE W

Family Brand Name:

Pass & Seymour

Grade:

Specification

Heights:

3.281 Inch

Length:

2.635 Inch

Material:

Nylon

Mounting Type:

Wall

NEMA:

6-20R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.322 L x .833 W x 3.813 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Type:

Decorator, Heavy Duty

Voltage:

250 Volt

Widths:

1.322 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_58029270

Heavy-Duty Decorator Spec Grade Single Receptacle Back & Side Wire 20amp 250volt Ivory Features: Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.; One-piece, brass, triple-wipe power contacts for lasting retention.; Heavy-duty compact design for easier installation and long lasting performance.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; Impact-resistant nylon face.; Terminal compartments isolated from each other for positive conductor containment.; Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.; All devices fit standard #26 opening wall plate.; Tri-drive terminal and mounting screws.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: cUL Listed; Federal Spec Listed
