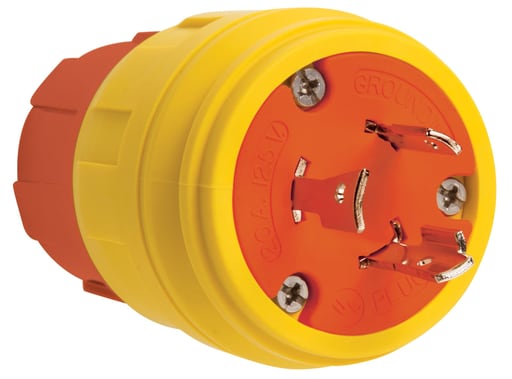

Pass & Seymour / Legrand - Pass & Seymour 26W47AM 20A 125V Locking Anti Microbial IP67 L5-20P Plug, Orange/Yellow

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007057072

  • Amperage - 20 Amp

  • Applications - High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors . Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings . Ideal for washdown areas . rated watertight for 1,500 PSI high-pressure hose down . Nickel-plated blades and contacts for long-lasting, superior corrosion resistance . Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P

  • Buy American - Y

  • Catalog Number - 26W47AM

Packaging

  • 1 ea

EAN

00785007057072

Part #

247047

Catalog #

26W47AM

Commercial reference

26W47AM

12-Digit UPC:

785007057072

Amperage:

20 Amp

Applications:

High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors . Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings . Ideal for washdown areas . rated watertight for 1,500 PSI high-pressure hose down . Nickel-plated blades and contacts for long-lasting, superior corrosion resistance . Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P

Buy American:

Y

Catalog Number:

26W47AM

Color:

Yellow

Conductor Size:

14-10 AWG

Country of Origin:

USA

Depths:

2.62 Inch

ERP_productname:

PASS 26W47AM TL PLG IP67 20A 125V L520P ANTI-MIC

Family Brand Name:

Legrand

Heights:

1.85 Inch

Length:

3.1 Inch

Material:

Rubber

NEMA:

L5-20P

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Sub Brand:

Pass & Seymour

Type:

Plug

Voltage:

125 Volt

Widths:

1.85 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_58542516

SteriGuard Anti-Microbial Wiring Devices provide excellent protection against the growth of microbes on all surfaces. Independent testing proves the ability of these devices to inhibit the growth of Escherichia coli, Gram (-) and Staphylococcus aureus, Gram (+) providing long lasting benefits to manufacturers beyond conventional cleaning methods. Rated watertight for 1,500 psi high-pressure'' Features: UL and CSA Listed; NSF (National Sanitation Foundation) Certified; Patent Pending; Anti-microbial Additives Embedded in polymer and inhibits Growth of Bacteria, Molds, Mildews and Fungi; Anti-microbial Additive Resistant to Scuffing and Cleaning; Escherichia (E.Coli): - Log reduction greater than 4.8, reduced surface bacteria by greater than 99.99%; Staphylococcus (Staph), MRSA: - Log Reduction greater than 4.3, reduces surface bacteria by greater than 99.97%; Salmonella : Log Reduction Greater Than 3.6, reduces surface bacteria by Greater Than 99.97%; RoHS Compliant (Non-Halogenated); Independently tested and Certified to JIS Z2801 standards; Resistant to High Pressure Hose-down applications; Tongue & Groove Environmental Sealing; Keyed Body and Cover for Alignment; NEMA Type 4, 4x, 6, 6P and IP67 Protection; Steriguard: Anti-microbial Wiring Devices are ideal for a wide range of applications including food and beverage preparation, procession, & packaging: agriculture, pharmaceutical, and health care.
