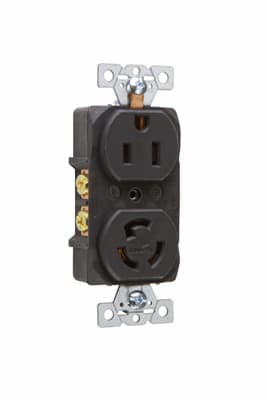

Pass & Seymour / Legrand - Pass & Seymour 4792 Receptacle Duplex Combination
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007479201
Amperage - 15 Amp
Applications - Commercial
Buy American - Y
Catalog Number - 4792
Packaging
1 ea
EAN
00785007479201
Part #
348816
Catalog #
4792
Commercial reference
4792
12-Digit UPC:
785007479201
Amperage:
15 Amp
Applications:
Commercial
Buy American:
Y
Catalog Number:
4792
Color:
Black
Conductor Size:
18-10 AWG
Country of Origin:
USA
Depths:
1.199 Inch
ERP_productname:
PASS 4792
Family Brand Name:
Legrand
Heights:
3.28 Inch
Material:
Nylon
NEMA:
5-15R,L5-15R
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Combination, Straight Blade, Locking
Voltage:
125 Volt
Widths:
1.5 in
Wire Size:
10 AWG
SoneparProductId:
SKU_US_26339625
Receptacle Duplex Combination Features: Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.; Face color coding by voltage facilitates locating and mating of proper devices.; One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.; Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.; Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.; Side and external screw-pressure-plate back wire capability.; Accepts #14 - #10 AWG. - Certifications: CSA Listed; UL Listed
