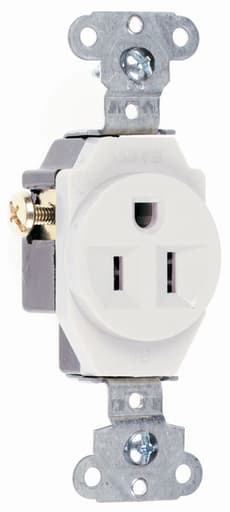

Pass & Seymour / Legrand - Pass & Seymour 5251-W 15Amp 125Volt, Heavy-Duty Spec Grade Single Receptacle, Side Wire, White

CopyCopy
Pass & Seymour / Legrand - Pass & Seymour 5251-W 15Amp 125Volt, Heavy-Duty Spec Grade Single Receptacle, Side Wire, White

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007525151

  • Amperage - 15 Amp

  • Applications - Commercial,Residential

  • Catalog Number - 5251W

  • Color - White

Packaging

  • 1 ea

EAN

00785007525151

Part #

180654

Catalog #

5251W

Commercial reference

5251W

12-Digit UPC:

785007525151

Amperage:

15 Amp

Applications:

Commercial,Residential

Catalog Number:

5251W

Color:

White

Conductor Size:

4 AWG

Country of Origin:

Mexico

Depths:

1.08 Inch

ERP_productname:

PASS 5251W WHT SGL RCPT-NEMA5-15R

Family Brand Name:

Pass & Seymour

Grade:

Residential/Commercial

Heights:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Wall, Flush

NEMA:

5-15R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

3.3 in

Sub Brand:

Pass & Seymour

Tc Connection:

Wire Ground

Type:

Non-Reversing

Voltage:

125 Volt

Widths:

1.38 in

Wire Size:

4 AWG

SoneparProductId:

SKU_US_26459972

Heavy-Duty Spec Grade Single Receptacle Side, Wire 15amp 125volt, Brown Features: Auto-ground clip assures positive ground.; Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.; Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.; Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.; One-piece brass triple-wire power contacts for lasting retention.; For covering patents, see www.legrand.us/patents.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: cULus Listed
