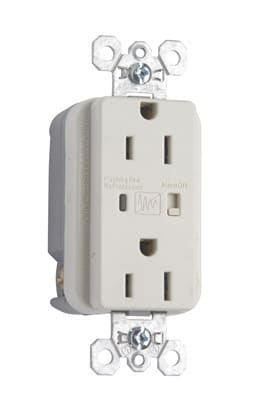

Pass & Seymour / Legrand - Pass & Seymour 5262-LASP Surge Protective Extra Heavy-Duty Duplex Receptacle, Back & Side Wire, 15A 125V - Light Almond

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007193404

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - 5262LASP

  • Class - IG

Packaging

  • 1 ea

EAN

00785007193404

Part #

100318

Catalog #

5262-LASP

Commercial reference

5262-LASP

12-Digit UPC:

785007193404

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

5262LASP

Class:

IG

Color:

Light Almond

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

7/8 Inch

ERP_productname:

PASS 5262-LASP TVSS RECP 15A 125V ALARM LA

Family Brand Name:

Pass & Seymour

Grade:

Specification

Heights:

2-3/4 Inch

Material:

Nylon

Mounting Type:

Wall

NEMA:

5-15R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.70 L x 1.25 W x 3.75 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Type:

TVSS

Voltage:

125 Volt

Wattage:

Electrical power is expressed in Amps and Volts.

Widths:

1.7 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_72338003

Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 15amp 125volt, Gray. Features: Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.; Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.; Audible alarm alert of MOV damage. Alarm able to be turned On/Off.; Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.; Impact-resistant thermoplastic exterior resists impacts and scrapes.; Triple-wipe, copper-alloy contacts for superior, more dependable connection.; Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.; Protection response time in less than one nanosecond.; For covering patents, see www.legrand.us/patents. - Certifications: cULus Listed
