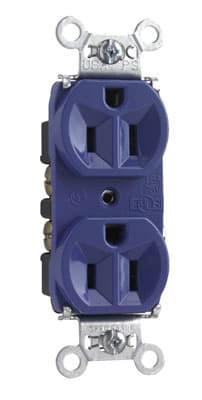

Pass & Seymour / Legrand - Pass & Seymour 5262BL 15A 125V Hard Use Duplex Receptacle, Blue

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007265736

  • Amperage - 15 Amp

  • Catalog Number - 5262BL

  • Color - Blue

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785007265736

Part #

160356

Catalog #

5262-BL

Commercial reference

5262-BL

12-Digit UPC:

785007265736

Amperage:

15 Amp

Catalog Number:

5262BL

Color:

Blue

Country of Origin:

Mexico

Depths:

0.78 Inch

ERP_productname:

PASS 5262-BL RECP DUP 15A 125V S+B WIRE BL

Family Brand Name:

Legrand

Grade:

Specification

Heights:

2.635 Inch

Sub Brand:

Pass & Seymour

Type:

Receptacles

Voltage:

125 Volt

Widths:

1.322 in

SoneparProductId:

SKU_US_52238855

Hard Use Spec Grade Duplex Receptacle Back & Side Wire 15amp 125volt Blue Features: Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.; LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; Impact-resistant nylon face.; 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.; Terminal compartments isolated from each other for positive conductor containment.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: cULus Listed
