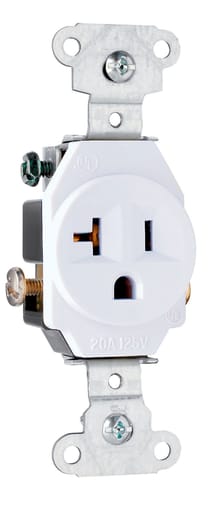

Pass & Seymour / Legrand - Pass & Seymour 5351-W Heavy-Duty Spec Grade Single Receptacle Side Wire 20Amp 125Volt, White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007535150

  • Amperage - 20 Amp

  • Applications - Commercial,Residential

  • Catalog Number - 5351W

  • Color - White

Packaging

  • 1 ea

EAN

00785007535150

Part #

181538

Catalog #

5351W

Commercial reference

5351W

12-Digit UPC:

785007535150

Amperage:

20 Amp

Applications:

Commercial,Residential

Catalog Number:

5351W

Color:

White

Conductor Size:

4 AWG

Country of Origin:

Mexico

Depths:

1.08 Inch

ERP_productname:

PASS 5351W WHT SGL RCPT-NEMA5-20R

Family Brand Name:

Pass & Seymour

Finish:

Gloss

Grade:

Residential/Commercial

Heights:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Wall, Flush

NEMA:

5-20R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

3.3 in

Sub Brand:

Pass & Seymour

Tc Connection:

Wire Ground

Type:

Non-Reversing

Voltage:

125 Volt

Widths:

1.38 in

Wire Size:

4 AWG

SoneparProductId:

SKU_US_26409688

Heavy-Duty Spec Grade Single Receptacle Side Wire 20amp 125volt White Certifications: cULus Listed - Features: Auto-ground clip assures positive ground.; Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle.; Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.; Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate side wire capability.; One-piece brass triple-wire power contacts for lasting retention.; For covering patents, see www.legrand.us/patents.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact
