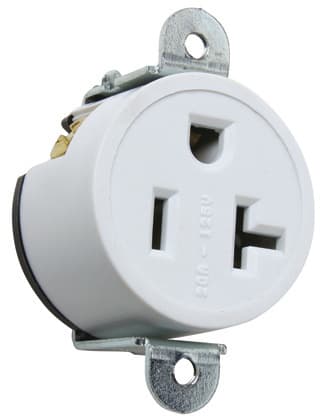

Pass & Seymour / Legrand - Pass & Seymour 5358-W Commercial Grade Short Strap Single Receptacle Side Wire 20A 125V - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007585834

  • Amperage - 20 Amp

  • Applications - For Residential/Commercial use

  • Catalog Number - 5358W

  • Color - White

Packaging

  • 1 ea

EAN

00785007585834

Part #

258720

Catalog #

5358-W

Commercial reference

5358-W

12-Digit UPC:

785007585834

Amperage:

20 Amp

Applications:

For Residential/Commercial use

Catalog Number:

5358W

Color:

White

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

1 Inch

ERP_productname:

PASS 5358-W RECP SGL 20A/125V SHORT STRP S-WIRE W

Family Brand Name:

Pass & Seymour

Finish:

Matte

Grade:

Specification

Heights:

1.49 Inch

Length:

-4 Inch

Material:

Thermoplastic

NEMA:

5-20R

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

4.25x1.25x1.81

Sub Brand:

Pass & Seymour

Type:

Receptacle

Voltage:

125 Volt

Widths:

1.49 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_52337376

Short Strap Spec Grade Single Receptacle, Side Wire, 20amp 125volt, Brown Certifications: CSA Listed; UL Listed - Features: Auto-ground clip assures positive ground.; .032 inch thick, brass, triple-wipe power contacts for lasting retention.; Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.; Backed-out tri-drive steel terminal screws.; One-piece brass triple-wipe power contacts for lasting retention.; For covering patents, see www.legrand.us/patents.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact
