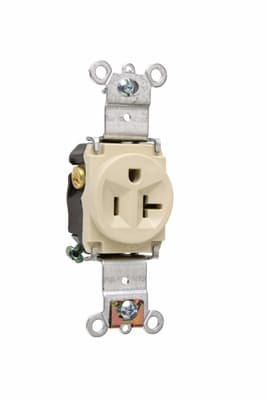

Pass & Seymour / Legrand - Pass & Seymour 5361-I Single Receptacle, HD Spec Grade, 20A 125V, Back & Side Wired - Ivory

CopyCopy
Pass & Seymour / Legrand - Pass & Seymour 5361-I Single Receptacle, HD Spec Grade, 20A 125V, Back & Side Wired - Ivory

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007536119

  • Amperage - 20 Amp

  • Applications - Commercial Grade

  • Catalog Number - 5361I

  • Color - Ivory

Packaging

  • 1 ea

EAN

00785007536119

Part #

181593

Catalog #

5361I

Commercial reference

5361I

12-Digit UPC:

785007536119

Amperage:

20 Amp

Applications:

Commercial Grade

Catalog Number:

5361I

Color:

Ivory

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

1.093 Inch

ERP_productname:

PASS 5361I 20A 125V SGL RCPT

Family Brand Name:

Pass & Seymour

Grade:

Specification

Heights:

1.68 Inch

Material:

Nylon

Mounting Type:

Wall

NEMA:

5-20R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.32 L x 1.093 W x 3.68 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Type:

Heavy Duty

Voltage:

125 Volt

Widths:

1.32 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_26409515

Heavy-Duty Spec Grade Single Receptacle, Back & Side Wire, 20amp 125volt, Red Features: Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.; .032 inch thick, brass, triple-wipe power contacts for lasting retention.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; Impact-resistant nylon face and thermoplastic back body.; Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.; Terminal compartments isolated from each other for positive conductor containment.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: cUL Listed
