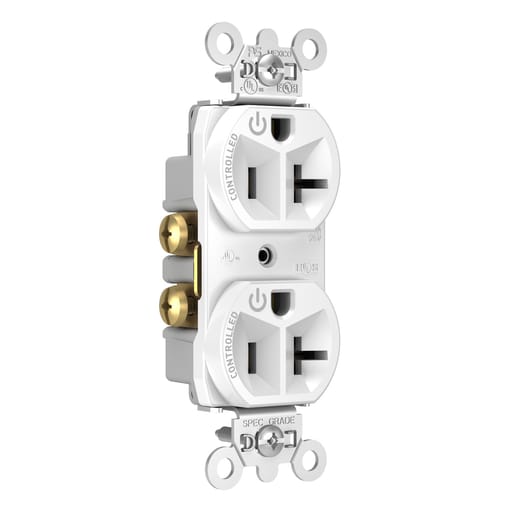

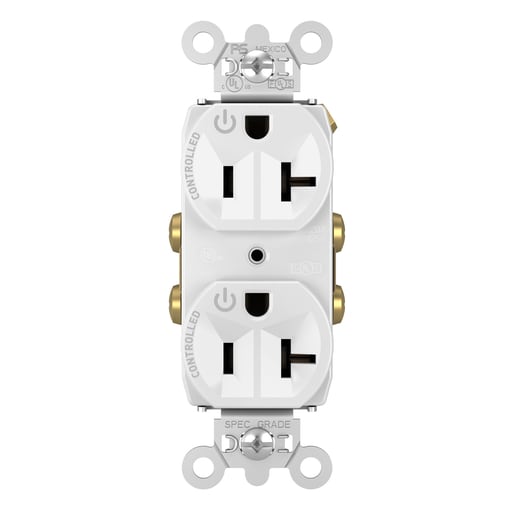

Pass & Seymour / Legrand - Pass & Seymour 5362CD-W 20A 125V Dual Control Duplex Outlet, White
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007038422
Amperage - 20 Amp
Catalog Number - 5362CDW
Color - White
Country of Origin - Mexico
Packaging
1 ea
EAN
00785007038422
Part #
242515
Catalog #
5362CD-W
Commercial reference
5362CD-W
12-Digit UPC:
785007038422
Amperage:
20 Amp
Catalog Number:
5362CDW
Color:
White
Country of Origin:
Mexico
Depths:
0.78 Inch
ERP_productname:
PASS 5362CD-W 20A DUAL CONT DUP RECP W
Family Brand Name:
Legrand
Finish:
Gloss
Grade:
Commercial
Heights:
2.635 Inch
Material:
Plastic
Mounting Type:
Flush
NEMA:
5-20R
Sub Brand:
Pass & Seymour
Type:
Non-Reversing
Voltage:
125 Volt
Widths:
1.32 in
SoneparProductId:
SKU_US_27218024
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with 2014 NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1. Features: Can be wired to any number of system-based or stand-alone plug load control solutions.; .032 inch thick, brass, triple-wipe power contacts for lasting retention.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; Impact-resistant nylon face.; 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.; Tri-drive terminal and mounting screws.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents. - Certifications: cULus Listed
