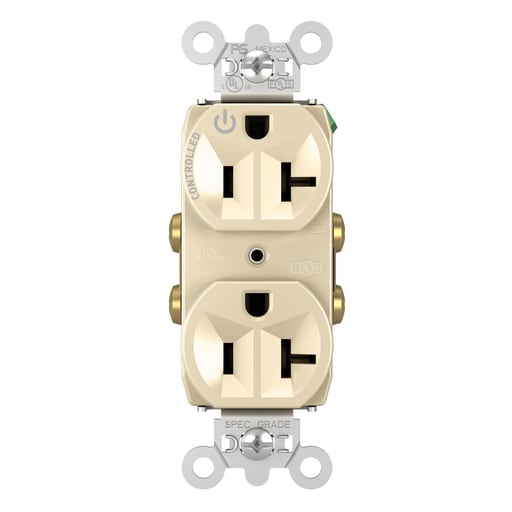

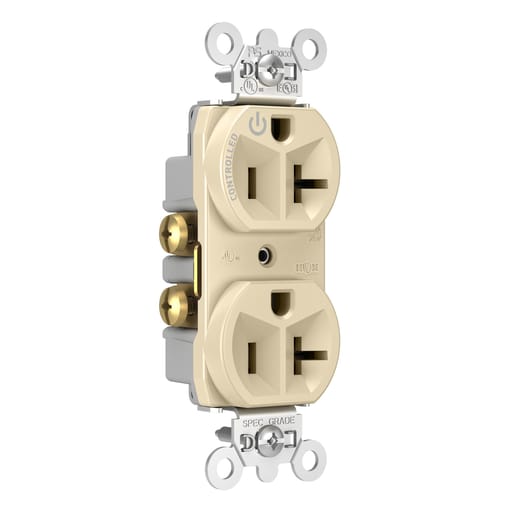

Pass & Seymour / Legrand - Pass & Seymour 5362CH-I 20A 125V Half-Controlled Duplex Receptacle, Back & Side Wire - Ivory

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007038255

  • Catalog Number - 5362CHI

  • Color - Ivory

  • Country of Origin - Mexico

  • Depths - 0.78 Inch

Packaging

  • 1 ea

EAN

00785007038255

Part #

228741

Catalog #

5362CH-I

Commercial reference

5362CH-I

12-Digit UPC:

785007038255

Catalog Number:

5362CHI

Color:

Ivory

Country of Origin:

Mexico

Depths:

0.78 Inch

ERP_productname:

PASS 5362CH-I 20A HALF CONT DUP RECP I

Family Brand Name:

Legrand

Heights:

2.635 Inch

Sub Brand:

Pass & Seymour

Widths:

1.32 in

SoneparProductId:

SKU_US_52602096

Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with 2014 NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1. Features: Can be wired to any number of system-based or stand-alone plug load control solutions.; Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.; Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.; .032 inch thick, brass, triple-wipe power contacts for lasting retention.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; Impact-resistant nylon face.; Terminal compartments isolated from each other for positive conductor containment.; Tri-drive terminal and mounting screws.; Auto-ground clip assures positive ground. - Certifications: Federal Spec Listed; cULus Listed
