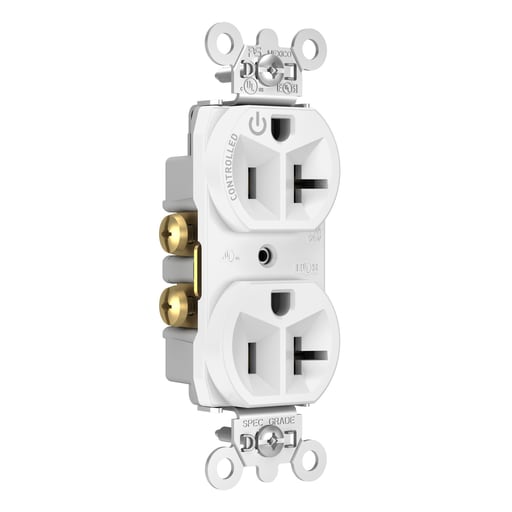

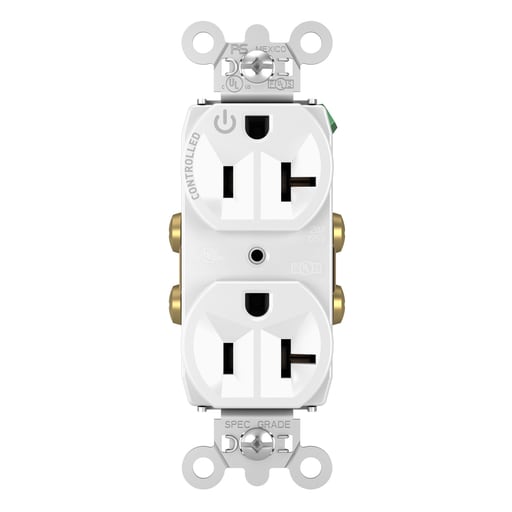

Pass & Seymour / Legrand - Pass & Seymour 5362CH-W 20A 125V Half-Controlled Duplex Receptacle, Back & Side Wire - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007038477

  • Amperage - 20 Amp

  • Catalog Number - 5362CHW

  • Color - White

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785007038477

Part #

325967

Catalog #

5362CH-W

Commercial reference

5362CH-W

12-Digit UPC:

785007038477

Amperage:

20 Amp

Catalog Number:

5362CHW

Color:

White

Country of Origin:

Mexico

Depths:

0.78 Inch

ERP_productname:

PASS 5362CH-W 20A HALF CONT DUP RECP W

Family Brand Name:

Legrand

Finish:

Matte

Grade:

Commercial

Heights:

2.635 Inch

NEMA:

5-20R

Sub Brand:

Pass & Seymour

Type:

Non-Reversing

Voltage:

125 Volt

Widths:

1.32 in

SoneparProductId:

SKU_US_27113164

Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with 2014 NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1. Certifications: cULus Listed - Features: Can be wired to any number of system-based or stand-alone plug load control solutions.; Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.; Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.; .032 inch thick, brass, triple-wipe power contacts for lasting retention.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; Impact-resistant nylon face.; Terminal compartments isolated from each other for positive conductor containment.; Tri-drive terminal and mounting screws.; Auto-ground clip assures positive ground.
