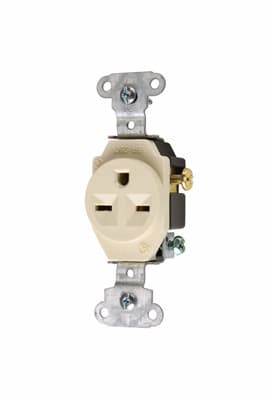

Pass & Seymour / Legrand - Pass & Seymour 5651-I Heavy-Duty Spec Grade Single Receptacle, Side Wire, 15A 250V - Ivory

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007565119

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - 5651I

  • Color - Natural

Packaging

  • 1 ea

EAN

00785007565119

Part #

181770

Catalog #

5651-I

Commercial reference

5651-I

12-Digit UPC:

785007565119

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

5651I

Color:

Natural

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

1.08 Inch

ERP_productname:

PASS 5651-I IV SGL RCPT-NEMA6-15R

Family Brand Name:

Pass & Seymour

Finish:

Matte

Grade:

Federal Specification

Heights:

3.28 Inch

Material:

Nylon

NEMA:

6-15R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.32 L x 1.08 W x 3.68 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Type:

Single Receptacles

Voltage:

250 Volt

Widths:

1.38 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_26409202

Heavy-Duty Spec Grade Single Receptacle Side Wire 15amp 250volt Light Almond Features: Auto-ground clip assures positive ground.; One-piece heat-treated triple-wipe brass power contacts.; Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.; Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.; One-piece brass triple-wire power contacts for lasting retention.; For covering patents, see www.legrand.us/patents.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: cULus Listed
