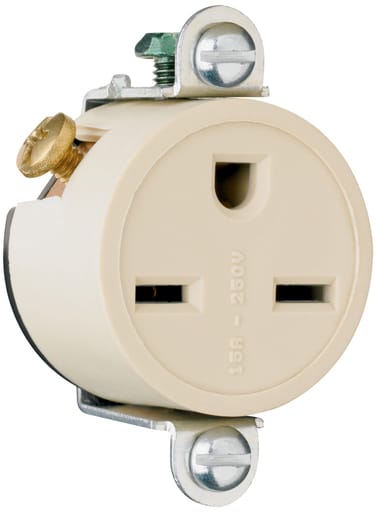

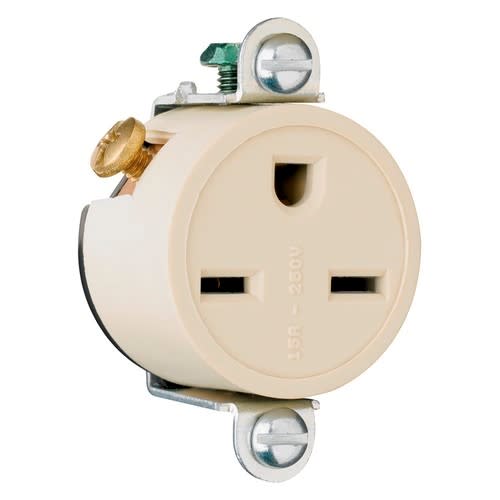

Pass & Seymour / Legrand - Pass & Seymour 5658-I Commercial Grade Short Strap Single Receptacle, Side Wire, 15A 250V - Ivory

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007565812

  • Amperage - 15 Amp

  • Applications - Commercial,Residential

  • Catalog Number - 5658I

  • Color - Ivory

Packaging

  • 1 ea

EAN

00785007565812

Part #

398291

Catalog #

5658-I

Commercial reference

5658-I

12-Digit UPC:

785007565812

Amperage:

15 Amp

Applications:

Commercial,Residential

Catalog Number:

5658I

Color:

Ivory

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

1 Inch

ERP_productname:

PASS 5658-I RECP SGL 15A 250V SHORT STRP S-WIRE I

Family Brand Name:

Legrand

Grade:

Specification

Heights:

1-3/4 Inch

Material:

Thermoplastic

NEMA:

5-15R

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

4.25x1.25x1.81

Sub Brand:

Pass & Seymour

Type:

Receptacle

Voltage:

250 Volt

Widths:

1.49 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_53178839

Short Strap Spec Grade Single Receptacle, Side Wire, 15amp 250volt, Ivory Features: Auto-ground clip assures positive ground.; Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.; Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.; Backed-out tri-drive steel terminal screws.; One-piece brass triple-wipe power contacts for lasting retention.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: CSA Listed; UL Listed
