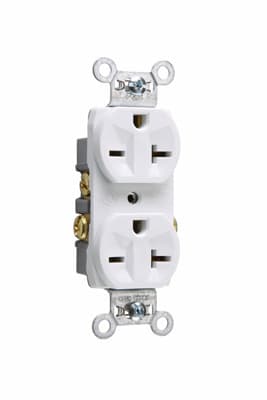

Pass & Seymour / Legrand - Pass & Seymour 5850-W Commercial Spec Grade Duplex Receptacle Side Wire 20A 250V - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007585018

  • Amperage - 20 Amp

  • Applications - Residential/Commercial

  • Catalog Number - 5850W

  • Color - White

Packaging

  • 1 ea

EAN

00785007585018

Part #

218023

Catalog #

5850-W

Commercial reference

5850-W

12-Digit UPC:

785007585018

Amperage:

20 Amp

Applications:

Residential/Commercial

Catalog Number:

5850W

Color:

White

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

0.78 Inch

ERP_productname:

PASS 5850-W 20A 250V DUPLEX RECEPT W

Family Brand Name:

Pass & Seymour

Finish:

Matte

Grade:

Commercial

Heights:

2.635 Inch

Material:

Thermoplastic

Mounting Type:

Wall

NEMA:

5-20R

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

4.25x1.25x1.81

Sub Brand:

Pass & Seymour

Type:

Non-Reversing

Voltage:

250 Volt

Widths:

1.322 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_26495926

Commercial Spec Grade Duplex Receptacle, Side Wire 20amp 250volt, White Features: Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.; Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; Impact-resistant nylon face and thermoplastic back body.; Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.; Terminal compartments isolated from each other for positive conductor containment.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed
