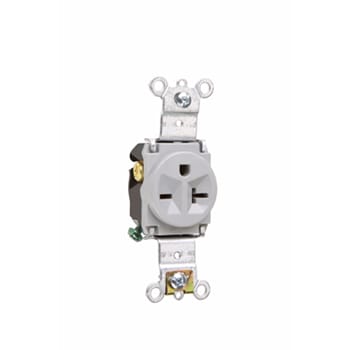

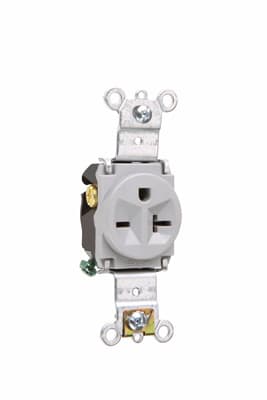

Pass & Seymour / Legrand - Pass & Seymour 5871-GRY Single Receptacle, HD Spec Grade, 20A 250V, Back & Side Wired - Gray

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007587128

  • Amperage - 20 Amp

  • Applications - Commercial Applications

  • Catalog Number - 5871GRY

  • Color - Gray

Packaging

  • 1 ea

EAN

00785007587128

Part #

128302

Catalog #

5871-GRY

Commercial reference

5871-GRY

12-Digit UPC:

785007587128

Amperage:

20 Amp

Applications:

Commercial Applications

Catalog Number:

5871GRY

Color:

Gray

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

1.093 Inch

ERP_productname:

PASS 5871-GRY RECP SGL 20A 250V S+B WIRE GRY

Family Brand Name:

Pass & Seymour

Grade:

Federal Specification

Heights:

3.28 Inch

Material:

Nylon

NEMA:

6-20R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.32 in L x 1.093 in W x 3.68 in H

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Type:

Heavy-Duty, Spec-Grade Single Receptacle

Voltage:

250 Volt

Widths:

1.32 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_26409276

Heavy-Duty Spec Grade Single Receptacle Back & Side Wire 20amp 250volt Gray Eco-Benefit Information: RoHS Compliant - Features: Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.; One-piece brass, triple-wipe power contacts for lasting retention.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; Impact-resistant nylon face and thermoplastic back body.; Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.; Terminal compartments isolated from each other for positive conductor containment.; Tri-drive terminal and mounting screws.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
