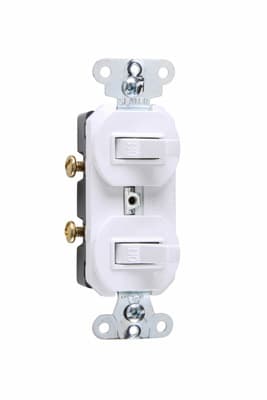

Pass & Seymour / Legrand - Pass & Seymour 670-WG Single Pole, Double Combination Switch, 20 amps, 120/277V - White
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007006049
Actuator - Toggle Switch
Amperage - 20 Amp
Applications - Commercial,Residential
Catalog Number - 670WG
Packaging
1 ea
EAN
00785007006049
Part #
173548
Catalog #
670-WG
Commercial reference
670-WG
12-Digit UPC:
785007006049
Actuator:
Toggle Switch
Amperage:
20 Amp
Applications:
Commercial,Residential
Catalog Number:
670WG
Color:
White
Country of Origin:
Mexico
Depths:
0.94 Inch
ERP_productname:
PASS 670-WG 20A 120/277V 2SP COMB SW
Family Brand Name:
Legrand
Finish:
Matte
Heights:
4.06 Inch
Number of Poles:
1 Pole
Size:
1.32 L x 0.94 W x 4.06 H In
Sub Brand:
Pass & Seymour
Tc Connection:
Side wire
Type:
Combination
Voltage:
0.433 Volt
Widths:
1.32 in
SoneparProductId:
SKU_US_26897098
Single Pole, Double Combination Switch, 20 amps, 120/277 volts, White. Features: Easily accessible break-off separate or common feed.; Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.; Side wire #12 and #14 AWG.; Two devices fit into the space of one.; Grounding combination devices meet NEC Requirements.; Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.; For covering patents, see www.legrand.us/patents. - Certifications: cULus Listed
