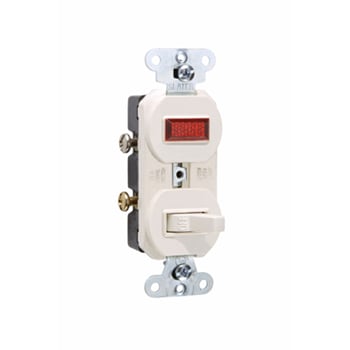

Pass & Seymour / Legrand - Pass & Seymour 692-LA 15 amps, 120V -Single Pole, Single Pilot Light, Combination Switch, Non-Grounding, Light Almond

CopyCopy
Pass & Seymour / Legrand - Pass & Seymour 692-LA 15 amps, 120V -Single Pole, Single Pilot Light, Combination Switch, Non-Grounding, Light Almond

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007690163

  • Actuator - Toggle

  • Amperage - 15 Amp

  • Applications - Residential, Commercial

  • Catalog Number - 692LA

Packaging

  • 1 ea

EAN

00785007690163

Part #

182409

Catalog #

692LA

Commercial reference

692LA

12-Digit UPC:

785007690163

Actuator:

Toggle

Amperage:

15 Amp

Applications:

Residential, Commercial

Catalog Number:

692LA

Color:

Light Almond

Country of Origin:

Mexico

Depths:

0.94 Inch

ERP_productname:

PASS 692LA 15A 120/125V SP SW&P/L

Family Brand Name:

Pass & Seymour

Heights:

3.28 Inch

Mounting Type:

Wall

Number of Poles:

1 Pole

Size:

1.32 L x 0.94 W x 4.06 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Side wire, non-grounding

Type:

Non-Grounding

Voltage:

120 Volt

Wattage:

0.04 Watt

Widths:

1.32 in

SoneparProductId:

SKU_US_26750156

Single Pole, Single Pilot Light, Combination Switch, 15 amps, 120/125 volts, Light Almond. Features: Easily accessible break-off separate or common feed.; Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.; Side wire #12 and #14 AWG.; Two devices fit into the space of one.; Grounding combination devices meet NEC Requirements.; Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.; This switch is compatible with incandescent loads only and is not recommended for use with LED or CFL lamps.; For covering patents, see www.legrand.us/patents. - Eco-Benefit Information: RoHS Compliant
