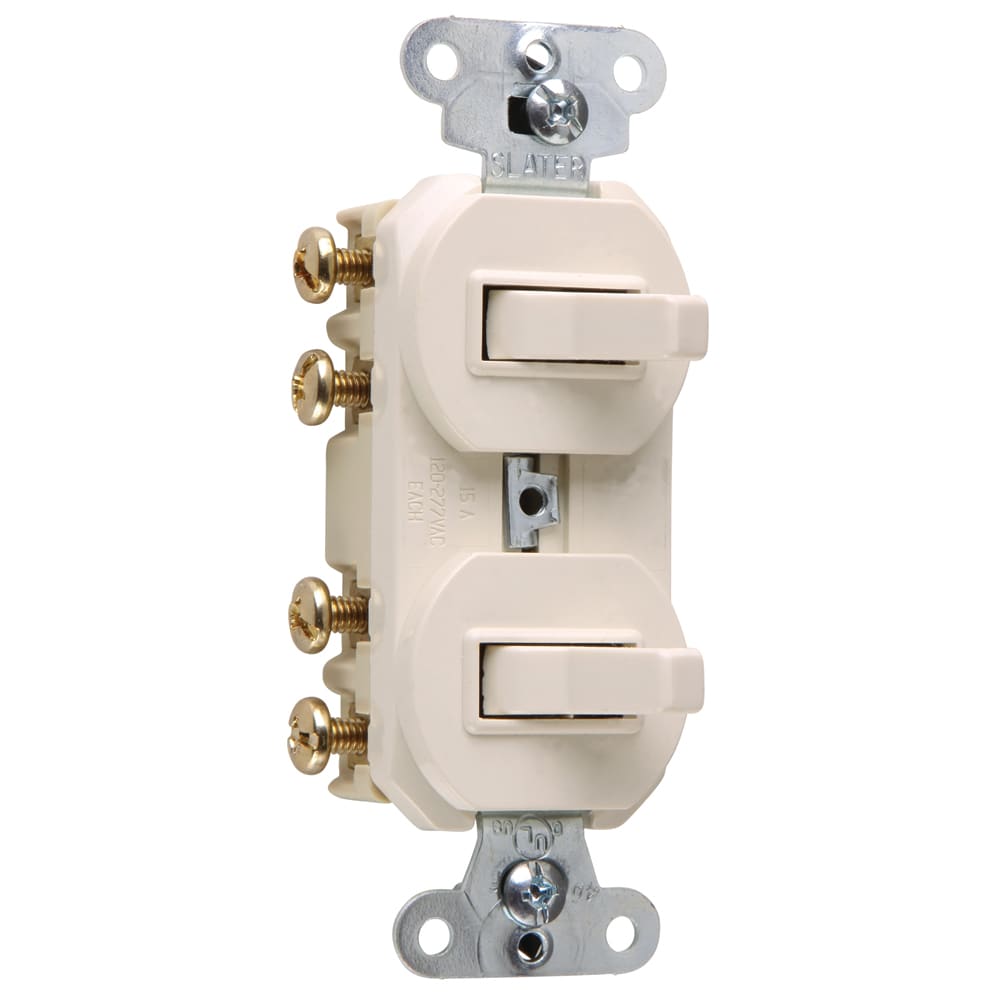

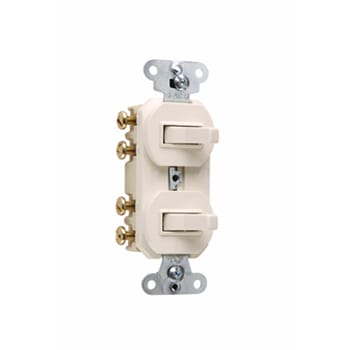

Pass & Seymour / Legrand - Pass & Seymour 693-LA 15 Amp 120/277 VAC 3-Way Light Almond Non-Grounding Duplex Combination Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007690194
Actuator - Toggle
Amperage - 16 Amp
Applications - Residential/Commercial
Catalog Number - 693LA
Packaging
1 ea
EAN
00785007690194
Part #
182459
Catalog #
693LA
Commercial reference
693LA
12-Digit UPC:
785007690194
Actuator:
Toggle
Amperage:
16 Amp
Applications:
Residential/Commercial
Catalog Number:
693LA
Color:
Light Almond
Country of Origin:
Mexico
Depths:
0.94 Inch
ERP_productname:
PASS 693LA 2-3WY 15A120/277V W/2SP
Family Brand Name:
Pass & Seymour
Heights:
3.28 Inch
Number of Poles:
3 Pole
Size:
1.32 L x 0.94 W x 4.06 H In
Sub Brand:
Pass & Seymour
Tc Connection:
Side wire, non-grounding
Type:
Combination, Double
Voltage:
120 Volt
Widths:
1.32 in
SoneparProductId:
SKU_US_26750113
Double Three-way Combination Switch, 15 amps, 120/277 volts, Light Almond. Features: Easily accessible break-off separate or common feed.; Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.; Side wire #12 and #14 AWG.; Two devices fit into the space of one.; Grounding combination devices meet NEC Requirements.; Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.; For covering patents, see www.legrand.us/patents. - Eco-Benefit Information: RoHS Compliant
