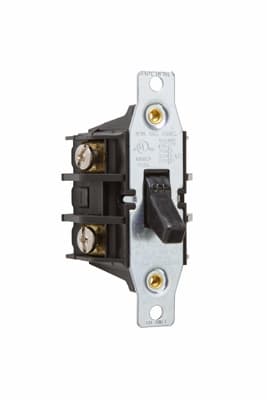

Pass & Seymour / Legrand - Pass & Seymour 7802-MD 30A 600VAC 2-Pole Single Phase Manual Controller

CopyCopy
Pass & Seymour / Legrand - Pass & Seymour 7802-MD 30A 600VAC 2-Pole Single Phase Manual Controller

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007267655

  • Actuator - Toggle Switch

  • Amperage - 30 Amp

  • Applications - Commercial and Industrial

  • Catalog Number - 7802MD

Packaging

  • 1 ea

EAN

00785007267655

Part #

164242

Catalog #

7802-MD

Commercial reference

7802-MD

12-Digit UPC:

785007267655

Actuator:

Toggle Switch

Amperage:

30 Amp

Applications:

Commercial and Industrial

Catalog Number:

7802MD

Country of Origin:

Mexico

Depths:

1.753 Inch

ERP_productname:

PASS 7802-MD 30A 2P SNGL PH AC MOTOR DISCONNET

Family Brand Name:

Pass & Seymour

Heights:

3.67 Inch

Mounting Type:

Box

Number of Poles:

2 Pole

Size:

1.753" Depth x 1.825" Width x 2.375" Height

Sub Brand:

Pass & Seymour

Tc Connection:

Side & Back Wired

Type:

Manual, Toggle Actuated

Voltage:

120 Volt

Widths:

1.825 in

SoneparProductId:

SKU_US_27218760

Double pole, Single Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect - 10KA @ 600VAC, 30A max Class J fuse. Features: High Horsepower rating of 20HP; Gull-wing shaped brass terminal pressure clamps; Constructed of glass-reinforced thermoplastic; UL508 and cULus Listing of individual device and assembled device within enclosure; Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing; External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed
