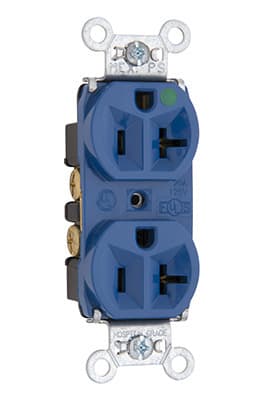

Pass & Seymour / Legrand - Pass & Seymour 8300HBL Hospital Grade, Special Receptacle Duplex 20A, 125V
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007008302
Amperage - 20 Amp
Catalog Number - 8300HBL
Color - Blue
Country of Origin - Mexico
Packaging
1 ea
EAN
00785007008302
Part #
194850
Catalog #
8300-HBL
Commercial reference
8300-HBL
12-Digit UPC:
785007008302
Amperage:
20 Amp
Catalog Number:
8300HBL
Color:
Blue
Country of Origin:
Mexico
Depths:
0.78 Inch
ERP_productname:
PASS 8300-HBL SPECIAL RECEP DUP 20A125V HOSP GRD
Family Brand Name:
Legrand
Grade:
Hospital
Heights:
3.281 Inch
Sub Brand:
Pass & Seymour
Type:
Compact Design,Receptacles
Voltage:
125 Volt
Widths:
1.322 in
SoneparProductId:
SKU_US_26876354
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back & Side Wire 20amp 125volt Brown Features: Impact-resistant nylon face.; .032 inch thick, brass, triple-wipe power contacts for lasting retention.; Easily accessible break-off line contact connecting tab for split circuit wiring.; Corrosion-resistant, zinc-plated steel strap is locked in.; Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.; High strength thermoplastic back body.; Auto-ground clip assures positive ground.; Compact design for easy installation.; Tri-drive terminal and mounting screws.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: Federal Spec Listed; cULus Listed
