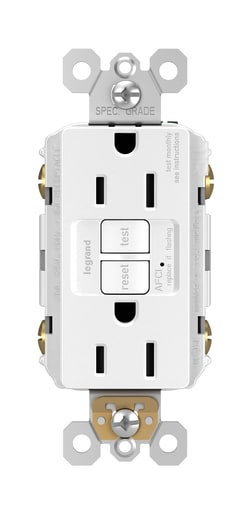

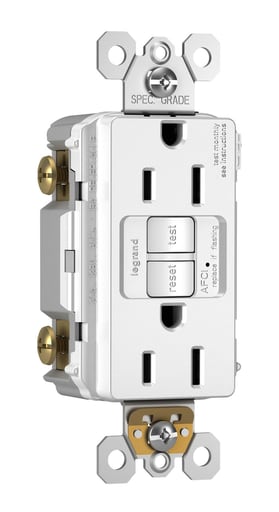

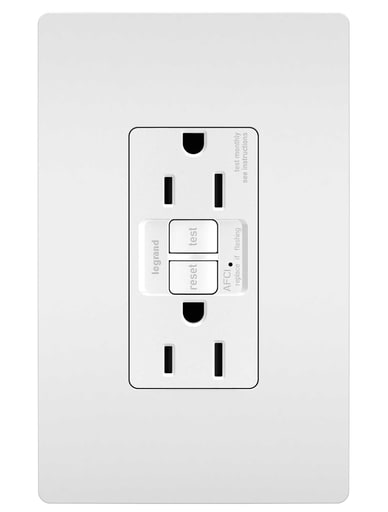

Pass & Seymour / Legrand - Pass & Seymour AF152TRW 15A AFCI Receptacle, Tamper-Resistant, White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007127829

  • Actuator - Control Circuit

  • Amperage - 15 Amp

  • Applications - For Residential/Commercial use

  • Catalog Number - AF152TRW

Packaging

  • 1 ea

EAN

00785007127829

Part #

100330

Catalog #

AF152TRW

Commercial reference

AF152TRW

12-Digit UPC:

785007127829

Actuator:

Control Circuit

Amperage:

15 Amp

Applications:

For Residential/Commercial use

Catalog Number:

AF152TRW

Color:

White

Country of Origin:

China

Depths:

1.36 Inch

ERP_productname:

PASS AF152TRW 15A AFCI TR REC W

Family Brand Name:

Pass & Seymour

Grade:

Residential/Commercial

Heights:

4.2 Inch

Interrupt Rating:

4.0 A

Mounting Type:

Box

Number of Gangs:

1 Gang

Number of Poles:

2 Pole

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Trip Type:

.025 Second Nominal

Type:

Tamper-Resistant Outlet Branch Circuit

Voltage:

125 Volt

Widths:

1.25 in

SoneparProductId:

SKU_US_57807832

15A 125V Tamper-Resistant Arc-Fault Circuit Interrupter, White Features: Protects against fire caused by arc-fault occurrences. Unlike breaker alternatives, AFCI outlets make it easier to fix trips with a convenient reset button on the outlet.\; Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.\; For more information on AFCI outlets, visit:www.afcisafetyreceptacles.org\; Extends protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.\; Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.\; More color options available to fit any style, including finishes to match current hardware and lighting trends.\; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.\ - Certifications: UL Listed; CSA Listed
