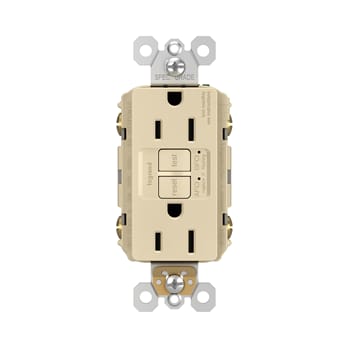

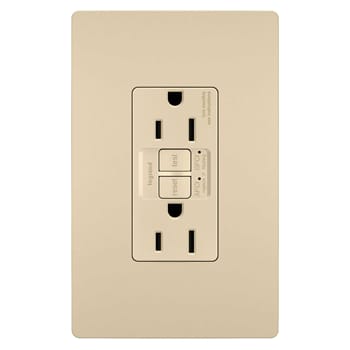

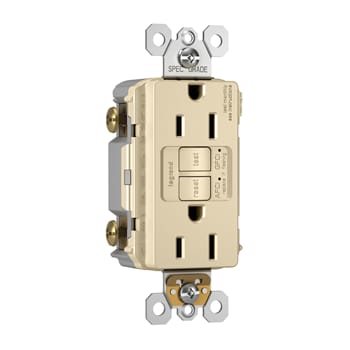

Pass & Seymour / Legrand - Pass & Seymour AFGF152TRI 15A 125V AFCI/GFCI Self-Test Tamper-Resistant Receptacle - Ivory

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007055733

  • Amperage - 15 Amp

  • Applications - Residential

  • Catalog Number - AFGF152TRI

  • Color - Ivory

Packaging

  • 1 ea

EAN

00785007055733

Part #

123021

Catalog #

AFGF152TRI

Commercial reference

AFGF152TRI

12-Digit UPC:

785007055733

Amperage:

15 Amp

Applications:

Residential

Catalog Number:

AFGF152TRI

Color:

Ivory

Country of Origin:

China

Depths:

1.36 Inch

ERP_productname:

PASS AFGF152TRI RADIANT 15A TR SLF TST AFCI/GFCI REC IV

Family Brand Name:

radiant

Heights:

4.2 Inch

NEMA:

5-15R

Size:

1.36" Depth x 1.73" Width x 4.21" Height

Sub Brand:

Pass & Seymour

Tc Connection:

Side & Back Wired

Type:

Radiant® Dual Function Tamper-Resistant 15A AFCI/GFCI Outlet

Voltage:

125 Volt

Widths:

1.25 in

SoneparProductId:

SKU_US_27219805

Protecting against both electrical fires caused by arc faults and injury due to electrical shock, this outlet meets National Electrical Code for use in kitchens and laundry areas. Unlike AFCI/GFCI breaker alternatives, this dual-function device makes it easy to recognize and fix trips right where they happen. Maximize safety, in style, with AFCI/GFCI protection featuring the sleek, clean lines of radiant. GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source. Dual-Function outlets meet code for GFCI requirements and offer additional protection against arc faults, also required in certain areas for home sale inspection. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Features: Part of the all-new radiant® collection.; FSUL Listed (Federal Specification WC596); Feed-through protection.; Two back-wire holes per termination add wiring flexibility, eliminate pigtailing and save box space.; High-impact-resistant, thermoplastic construction for superior strength and durability.; Tamper-Resistant automatic shutter system prevents young children form inserting common household objects. Black shutters essentially \"disappear\" into the background for an invisible effect preferred by end users.; Ground terminal back-wire for fast installation.; Patented SafeLock® Protection - if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.; Two indicator lights, one for GFCI and one for AFCI. Easy to distinguish between trip caused by arc fault and trip caused by ground fault. GFCI indicator light flashes if device fails the self-test, signaling that the GFCI should be replaced.; Auto-ground clip assures a positive ground to metal box.; Prevents line-load miswire - no power to the face or downstream receptacles if wired incorrectly. - Eco-Benefit Information: RoHS Compliant
