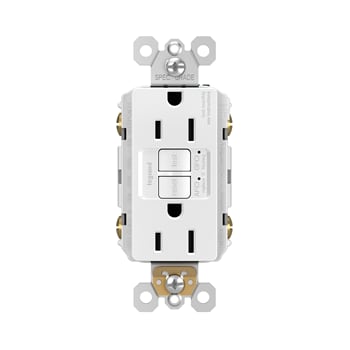

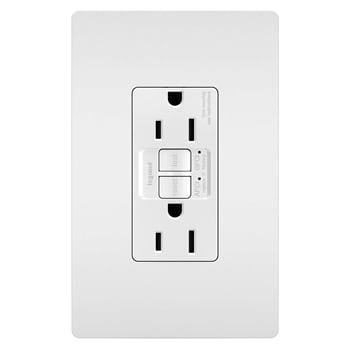

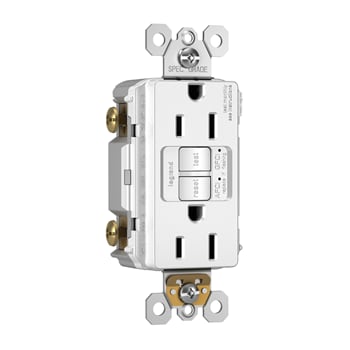

Pass & Seymour / Legrand - Pass & Seymour AFGF152TRW 15A 125V AFCI/GFCI Self-Test Tamper-Resistant Receptacle - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007055740

  • Amperage - 15 Amp

  • Applications - For Residential Use

  • Catalog Number - AFGF152TRW

  • Color - White

Packaging

  • 1 ea

EAN

00785007055740

Part #

218043

Catalog #

AFGF152TRW

Commercial reference

AFGF152TRW

12-Digit UPC:

785007055740

Amperage:

15 Amp

Applications:

For Residential Use

Catalog Number:

AFGF152TRW

Color:

White

Country of Origin:

China

Depths:

1.36 Inch

ERP_productname:

PASS AFGF152TRW RADIANT 15A TR SLF TST AFCI/GFCI REC WH

Family Brand Name:

Pass & Seymour

Heights:

4.2 Inch

Mounting Type:

Box

NEMA:

5-15R

Size:

1.73 in W x 1.36 in D x 4.21 in H

Sub Brand:

The Radiant®

Tc Connection:

Back & Side Wired

Type:

Dual Function, Tamper-Resistant

Voltage:

125 Volt

Widths:

1.25 in

SoneparProductId:

SKU_US_27220325

Protecting against both electrical fires caused by arc faults and injury due to electrical shock, this outlet meets National Electrical Code for use in kitchens and laundry areas. Unlike AFCI/GFCI breaker alternatives, this dual-function device makes it easy to recognize and fix trips right where they happen. Maximize safety, in style, with AFCI/GFCI protection featuring the sleek, clean lines of radiant. GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source. Dual-Function outlets meet code for GFCI requirements and offer additional protection against arc faults, also required in certain areas for home sale inspection. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Features: Part of the all-new radiant® collection.; FSUL Listed (Federal Specification WC596); Feed-through protection.; Two back-wire holes per termination add wiring flexibility, eliminate pigtailing and save box space.; High-impact-resistant, thermoplastic construction for superior strength and durability.; Tamper-Resistant automatic shutter system prevents young children form inserting common household objects. Black shutters essentially \"disappear\" into the background for an invisible effect preferred by end users.; Ground terminal back-wire for fast installation.; Patented SafeLock® Protection - if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.; Two indicator lights, one for GFCI and one for AFCI. Easy to distinguish between trip caused by arc fault and trip caused by ground fault. GFCI indicator light flashes if device fails the self-test, signaling that the GFCI should be replaced.; Auto-ground clip assures a positive ground to metal box.; Prevents line-load miswire - no power to the face or downstream receptacles if wired incorrectly. - Eco-Benefit Information: RoHS Compliant
