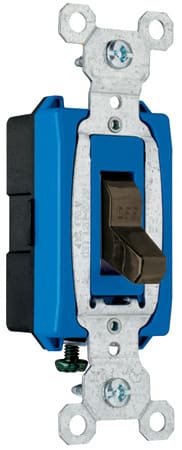

Pass & Seymour / Legrand - Pass & Seymour CS15AC1 15 Amp 120/277 VAC 1-Pole Brown Glass Reinforced Nylon Screw Mounting Toggle Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007126402
Actuator - Toggle
Amperage - 15 Amp
Applications - Commercial,Residential
Catalog Number - CS15AC1
Packaging
1 ea
EAN
00785007126402
Part #
148031
Catalog #
CS15AC1
Commercial reference
CS15AC1
12-Digit UPC:
785007126402
Actuator:
Toggle
Amperage:
15 Amp
Applications:
Commercial,Residential
Catalog Number:
CS15AC1
Color:
Brown
Country of Origin:
Mexico
Depths:
1.073 Inch
ERP_productname:
PASS CS15AC1 SP15A 120/277V AC SW
Family Brand Name:
Pass & Seymour
Finish:
Matte
Grade:
Commercial
Heights:
3.281 Inch
Material:
Thermoplastic
Number of Poles:
1 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Side Wire
Voltage:
120 Volt
Widths:
1.32 in
SoneparProductId:
SKU_US_26791026
Commercial 1-Pole Switch, Side-Wire, 15A 120/277V. Features: One-piece brass alloy contact arm for reliable electrical performance.; One-piece steel strap with integral ground is plated for corrosion resistance.; High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.; Heavy-duty toggle bumpers for smooth and quiet operation.; Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.; Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.; Cam designed for fast make with positive break action to minimize arcing and prolong switch life.; Oversized silver alloy contacts for longer dependable switch life.; Tri-drive terminal and mounting screws.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed; Federal Spec Listed
