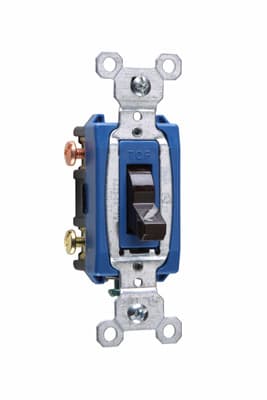

Pass & Seymour / Legrand - Pass & Seymour CS15AC3 Commercial 3Way Switch, Side Wire, 15Amp 120/277Volt, Brown
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007126488
Actuator - Toggle
Amperage - 15 Amp
Applications - Commercial
Catalog Number - CS15AC3
Packaging
1 ea
EAN
00785007126488
Part #
148094
Catalog #
CS15AC3
Commercial reference
CS15AC3
12-Digit UPC:
785007126488
Actuator:
Toggle
Amperage:
15 Amp
Applications:
Commercial
Catalog Number:
CS15AC3
Color:
Brown
Country of Origin:
Mexico
Depths:
1.09 Inch
ERP_productname:
PASS CS15AC3 3WY15A 120/277V AC SW
Family Brand Name:
Pass & Seymour
Finish:
Matte
Grade:
Commercial
Heights:
4.195 Inch
Material:
Thermoplastic
Number of Poles:
3 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
3 Way
Voltage:
120 Volt
Wattage:
1 Watt
Widths:
1.25 in
SoneparProductId:
SKU_US_26787506
Commercial 3way Switch, Side Wire, 15amp 120/277volt, White. Features: One-piece brass alloy contact arm for reliable electrical performance.; One-piece steel strap with integral ground is plated for corrosion resistance.; High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.; Heavy-duty toggle bumpers for smooth and quiet operation.; Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.; Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.; Cam designed for fast make with positive break action to minimize arcing and prolong switch life.; Oversized silver alloy contacts for longer dependable switch life.; Tri-drive terminal and mounting screws.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed; Federal Spec Listed
