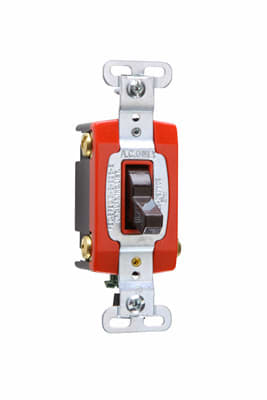

Pass & Seymour / Legrand - Pass & Seymour CSB20AC4 Construction 4Way Switch, Back & Side Wire, 20Amp 120/277Volt, Brown
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007126358
Amperage - 20 Amp
Applications - For Commercial Use
Catalog Number - CSB20AC4
Color - Brown
Packaging
1 ea
EAN
00785007126358
Part #
147959
Catalog #
CSB20AC4
Commercial reference
CSB20AC4
12-Digit UPC:
785007126358
Amperage:
20 Amp
Applications:
For Commercial Use
Catalog Number:
CSB20AC4
Color:
Brown
Country of Origin:
Mexico
Depths:
1.073 Inch
ERP_productname:
PASS CSB20AC4 4WY20A 120/277V AC SW
Family Brand Name:
Pass & Seymour
Finish:
Matte
Grade:
Specification
Heights:
3.281 Inch
Number of Poles:
2 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
4-Way
Voltage:
120 Volt
Wattage:
4 Watt
Widths:
1.32 in
SoneparProductId:
SKU_US_26716808
Construction 4way Switch, Back & Side Wire, 20amp 120/277volt, Ivory. Features: One-piece brass alloy contact arm for reliable electrical performance.; One-piece steel strap with integral ground is plated for corrosion resistance.; High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.; Heavy-duty toggle bumpers for smooth and quiet operation.; Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.; Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.; Cam designed for fast make with positive break action to minimize arcing and prolong switch life.; Oversized silver alloy contacts for longer dependable switch life.; Tri-drive terminal and mounting screws.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: Federal Spec Listed; CSA Listed; cULus Listed; UL Listed
