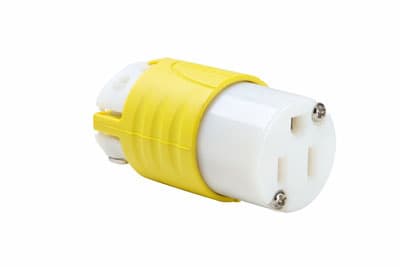

Pass & Seymour / Legrand - Pass & Seymour GR5269-X Straight Blade Connector 2Pole 3Wire 15Amp 125Volt Corrosion Resistant
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007526790
Amperage - 15 Amp
Applications - Commercial
Catalog Number - CR5269X
Color - Yellow
Packaging
1 ea
EAN
00785007526790
Part #
147553
Catalog #
CR5269-X
Commercial reference
CR5269-X
12-Digit UPC:
785007526790
Amperage:
15 Amp
Applications:
Commercial
Catalog Number:
CR5269X
Color:
Yellow
Conductor Size:
18-10 AWG
Country of Origin:
Mexico
ERP_productname:
PASS CR5269-X 15A 125V CONN
Family Brand Name:
Legrand
Grade:
Specification
Length:
1.752 Inch
Material:
Nylon
NEMA:
5-15R
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
2.7"
Sub Brand:
Pass & Seymour
Type:
Straight Blade
Voltage:
125 Volt
Widths:
1.516 in
Wire Size:
10 AWG
SoneparProductId:
SKU_US_72347474
Straight Blade Connector 2pole 3wire 15amp 125volt Corrosion Resistant Features: Unit arrives completely ready-to-wire, cuts installation time significantly.; Nylon housing provides impact and chemical resistance.; Rugged two-piece cord grip provides more uniform cord retention.; Internal dust shield keeps terminals free of contaminants.; Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.; All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.; Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.; Cord-grip screws recessed to protect installer against screwdriver head slippage.; For covering patents, see www.legrand.us/patents. - Certifications: cULus Listed
