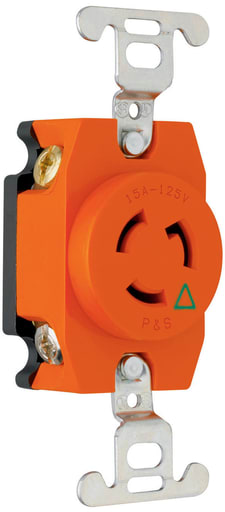

Pass & Seymour / Legrand - Pass & Seymour IG4710 Turnlok Single Receptacle, 3wire, 15A 125V Isolated Ground

CopyCopy
Pass & Seymour / Legrand - Pass & Seymour IG4710 Turnlok Single Receptacle, 3wire, 15A 125V Isolated Ground

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007647105

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - IG4710

  • Color - Black and Orange

Packaging

  • 1 ea

EAN

00785007647105

Part #

149454

Catalog #

IG4710

Commercial reference

IG4710

12-Digit UPC:

785007647105

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

IG4710

Color:

Black and Orange

Conductor Size:

18-10 AWG

Country of Origin:

Mexico

Depths:

1 Inch

ERP_productname:

PASS IG4710 LKG SGL RCPT-NMA L5-15R

Family Brand Name:

Pass & Seymour

Finish:

Gloss

Grade:

Commercial

Heights:

2-1/4 Inch

Material:

Thermoplastic

Mounting Type:

Flush

NEMA:

L5-15R

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

4.1"

Sub Brand:

Turnlok®

Type:

Isolated Ground

Voltage:

125 Volt

Widths:

1.437 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_26409332

Turnlok Single Receptacle 3wire 15amp 125volt Isolated Ground Features: Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.; Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.; IG symbol and Isolated Ground markings for easy identification and circuit delineation.; One-piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.; Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.; Side and external screw-pressure-plate back wire capability. Accepts #14-#10 AWG. - Certifications: cULus Listed; UL Listed; CSA Listed
