Pass & Seymour / Legrand - Pass & Seymour IG5362-ISP Isolated Ground Surge Protective Duplex Receptacle, Back & Side Wire, 20A 125V - Ivory

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007194562

  • Amperage - 20 Amp

  • Applications - Commercial

  • Catalog Number - IG5362ISP

  • Class - IG

Packaging

  • 1 ea

EAN

00785007194562

Part #

212803

Catalog #

IG5362-ISP

Commercial reference

IG5362-ISP

12-Digit UPC:

785007194562

Amperage:

20 Amp

Applications:

Commercial

Catalog Number:

IG5362ISP

Class:

IG

Color:

Ivory

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

1.225 Inch

ERP_productname:

PASS IG5362-ISP IG TVSS RECP 20A 125V ALARM IV

Family Brand Name:

Legrand

Grade:

Specification

Heights:

2.8 Inch

Material:

Nylon

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.70 L x 1.25 W x 3.75 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Type:

Duplex

Voltage:

125 Volt

Wattage:

Electrical power is expressed in Amps and Volts.

Widths:

1.75 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_26391344

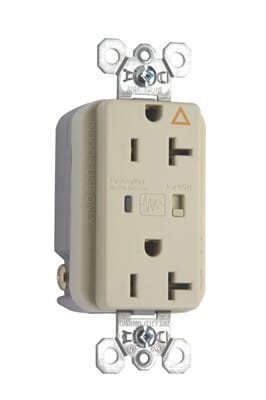

Isolated Ground Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 20amp 125volt, Light Almond. Certifications: cULus Listed - Features: Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.; .032 inch thick, brass, triple-wipe power contacts for lasting retention.; Audible alarm alert of MOV damage. Alarm able to be turned On/Off.; Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.; Triple-wipe, copper-alloy contacts for superior, more dependable connection.; External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors.; External pressure plate feature allows two conductors to be terminated by a single screw.; Plastic barrier isolates grounding terminal from mounting strap and metal boxes.; For covering patents, see www.legrand.us/patents.
