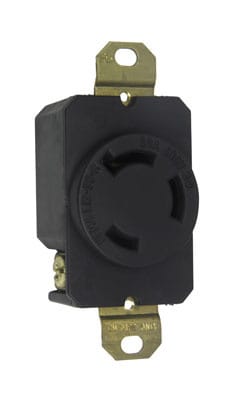

Pass & Seymour / Legrand - Pass & Seymour L1230-R Turnlok Single Receptacle, 3wire, 30amp 3phase 480V
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007123050
Amperage - 30 Amp
Applications - Commercial
Catalog Number - L1230R
Color - Black
Packaging
1 ea
EAN
00785007123050
Part #
281660
Catalog #
L1230-R
Commercial reference
L1230-R
12-Digit UPC:
785007123050
Amperage:
30 Amp
Applications:
Commercial
Catalog Number:
L1230R
Color:
Black
Conductor Size:
18-10 AWG
Country of Origin:
Mexico
Depths:
1.28 Inch
ERP_productname:
PASS L1230-R R SGL 3W30A3480V T/L
Family Brand Name:
Legrand
Heights:
2.42 Inch
Material:
Thermoplastic
NEMA:
L12-30R
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Number of Wires:
3 Wire
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Single Receptacles
Voltage:
480 Volt
Widths:
1.61 in
Wire Size:
10 AWG
SoneparProductId:
SKU_US_57863334
Turnlok Single Receptacle, 3wire 30amp 3phase 480volt Features: Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.; Face color coding by voltage facilitates locating and mating of proper devices.; One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.; Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.; Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.; Side and external screw-pressure-plate back wire capability.; Accepts #14 - #10 AWG. - Certifications: cULus Listed
