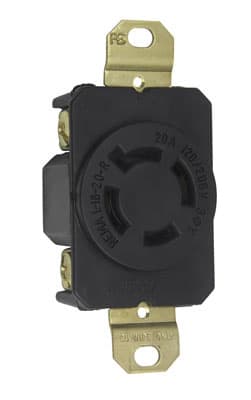

Pass & Seymour / Legrand - Pass & Seymour L1820-R Turnlok Single Receptacle, 4wire, 20A 120/208V

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007182057

  • Amperage - 20 Amp

  • Applications - Commercial

  • Catalog Number - L1820R

  • Color - Black

Packaging

  • 1 ea

EAN

00785007182057

Part #

112026

Catalog #

L1820-R

Commercial reference

L1820-R

12-Digit UPC:

785007182057

Amperage:

20 Amp

Applications:

Commercial

Catalog Number:

L1820R

Color:

Black

Conductor Size:

18-10 AWG

Country of Origin:

Mexico

Depths:

1.19 Inch

ERP_productname:

PASS L1820-R LKG SGL RCPT-NM L18-20

Family Brand Name:

Legrand

Heights:

2.29 Inch

Length:

3.28 Inch

Material:

Thermoplastic

NEMA:

L18-20R

Number of Phases:

3 Phase

Number of Poles:

4 Pole

Number of Wires:

4 Wire

Size:

3.3"

Sub Brand:

Pass & Seymour

Type:

Single Receptacles

Voltage:

120 Volt

Widths:

1.61 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_26680442

Receptacle Single 4wire 20amp 120/208volt Turnlok Certifications: UL Listed - Features: Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.; Face color coding by voltage facilitates locating and mating of proper devices.; One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.; Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.; Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.; Side and external screw-pressure-plate back wire capability.; Accepts #14 - #10 AWG.
