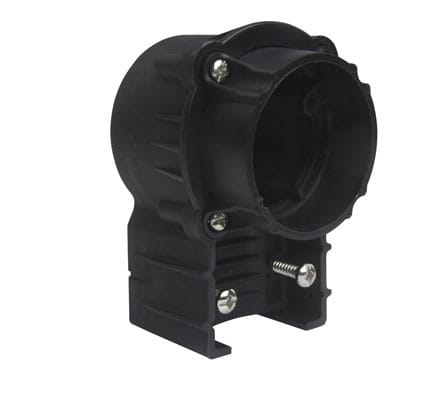

Pass & Seymour / Legrand - Pass & Seymour L203045AN Right Angle Locking Device Adapter

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007165456

  • Amperage - 20 Amp

  • Applications - Industrial

  • Catalog Number - L203045AN

  • Color - Black

Packaging

  • 1 ea

EAN

00785007165456

Part #

366275

Catalog #

L203045-AN

Commercial reference

L203045-AN

12-Digit UPC:

785007165456

Amperage:

20 Amp

Applications:

Industrial

Catalog Number:

L203045AN

Color:

Black

Conductor Size:

18-8 AWG

Country of Origin:

Mexico

Depths:

1.65 Inch

ERP_productname:

PASS L203045-AN ANGLE ADAPTER 20/30A 4+5W TURNLOCK

Family Brand Name:

Legrand

Heights:

3.868 Inch

Material:

Nylon

NEMA Size:

4,5

Number of Poles:

2 Pole

Number of Wires:

4 Wire

Size:

2.675 L x 1.65 W x 3.868 H In

Sub Brand:

Pass & Seymour

Type:

Adapter, Angle Adapter

Widths:

2.675 in

Wire Size:

18-8 AWG

SoneparProductId:

SKU_US_57744173

ANGLE ADAPTER 20/30A 4and5W TURNLOCK Features: Angle plugs and adapters both allow for 4-position face rotation.; 20/30A 3 Wire Turnlok: Right Angle Adapters are adjustable up to 8 positions.; Angle adapters (sold separately) will accommodate all P&S Turnlok style plugs and connectors on a retrofit basis. Simply remove the straight handle body from the plug or connector face assembly, and replace with the angle adapter.; Tri-drive assembly and cord-grip screws are standard on all angle plugs and adapters.; Angle plugs and adapters have the same wide cord diameter range (.230''-1.150'') that is present on all Turnlok plugs and connectors. - Certifications: cULus Listed
