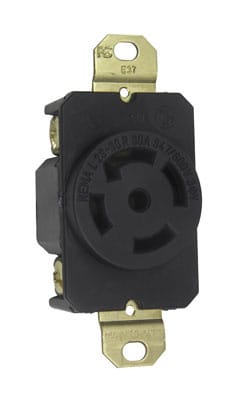

Pass & Seymour / Legrand - Pass & Seymour L2330-R Turnlok Single Receptacle, 5wire, 30amp 347/600V
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007233056
Amperage - 30 Amp
Applications - Commercial
Catalog Number - L2330R
Color - Black
Packaging
1 ea
EAN
00785007233056
Part #
356198
Catalog #
L2330-R
Commercial reference
L2330-R
12-Digit UPC:
785007233056
Amperage:
30 Amp
Applications:
Commercial
Catalog Number:
L2330R
Color:
Black
Conductor Size:
18-10 AWG
Country of Origin:
Mexico
Depths:
1.19 Inch
ERP_productname:
PASS L2330-R R SGL 5W30A347/600V T/L
Family Brand Name:
Legrand
Heights:
2.37 Inch
Material:
Thermoplastic
NEMA:
L23-30R
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Number of Wires:
5 Wire
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Single Receptacles
Voltage:
347 Volt
Widths:
1.61 in
Wire Size:
10 AWG
SoneparProductId:
SKU_US_52158210
Receptacle Single 5wire 30amp 347/600volt Turnlok Features: Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.; Face color coding by voltage facilitates locating and mating of proper devices.; One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.; Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.; Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.; Side and external screw-pressure-plate back wire capability.; Accepts #14 - #10 AWG. - Certifications: cULus Listed
