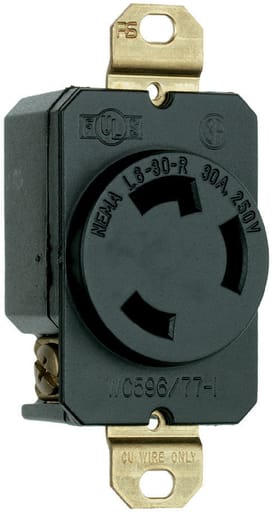

Pass & Seymour / Legrand - Pass & Seymour L630-R Turnlok® Single Receptacle, 3Wire 30Amp 250V

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007263053

  • Amperage - 30 Amp

  • Applications - Industrial

  • Catalog Number - L630R

  • Color - Black

Packaging

  • 1 ea

EAN

00785007263053

Part #

150852

Catalog #

L630R

Commercial reference

L630R

12-Digit UPC:

785007263053

Amperage:

30 Amp

Applications:

Industrial

Catalog Number:

L630R

Color:

Black

Conductor Size:

4 AWG

Country of Origin:

Mexico

Depths:

3.48 Inch

ERP_productname:

PASS L630R LKG SGL RCPT-NEMA L6-30R

Family Brand Name:

Pass & Seymour

Finish:

Gloss

Grade:

Industrial/Specification

Heights:

1.28 Inch

Material:

Nylon

Mounting Type:

Flush

NEMA:

L6-30R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

3.3 in

Sub Brand:

Turnlok®

Type:

Single Receptacles

Voltage:

250 Volt

Widths:

1.61 in

Wire Size:

4 AWG

SoneparProductId:

SKU_US_26341210

Features high-quality, brass contacts for rock-solid electrical connections and long service life. Single-piece, solid brass or steel straps and impact-resistant nylon face and body help it shrug off hard use. Certifications: cULus Listed; Federal Spec Listed - Features: Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.; Face color coding by voltage facilitates locating and mating of proper devices.; One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.; Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.; Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.; Side and external screw-pressure-plate back wire capability.; Accepts #14 - #10 AWG.
