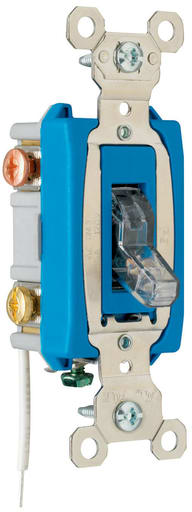

Pass & Seymour / Legrand - Pass & Seymour PS15AC3-CPL 15 Amp 120 VAC 3-Way Clear Glass Reinforced Nylon Screw Mounting Pilot Lighted Toggle Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007195811
Amperage - 15 Amp
Applications - Industrial
Catalog Number - PS15AC3CPL
Color - Clear
Packaging
1 ea
EAN
00785007195811
Part #
241705
Catalog #
PS15AC3-CPL
Commercial reference
PS15AC3-CPL
12-Digit UPC:
785007195811
Amperage:
15 Amp
Applications:
Industrial
Catalog Number:
PS15AC3CPL
Color:
Clear
Country of Origin:
Mexico
Depths:
1.09 Inch
ERP_productname:
PASS PS15AC3-CPL 15A 120VAC B+S WIRE 3W PILOT CL
Family Brand Name:
Legrand
Finish:
Clear
Grade:
Industrial
Heights:
4.195 Inch
Number of Poles:
3 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Pilot Lighted
Voltage:
120 Volt
Wattage:
3 Watt
Widths:
1.25 in
SoneparProductId:
SKU_US_26497167
3-Way Pilot Lighted Switch, Back and Side-Wire, 15A 120VAC Features: External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.; Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.; Cam controls fast ''make'' and positive ''break'' to minimize arcing.; Heavy-duty bumper pads for quiet operation.; High strength thermoplastic polycarbonate toggle.; Back body made of glass-reinforced nylon.; Locking support provides resistance to face and back body separation.; Oversized silver alloy contacts for long life and better heat dissipation.; Grounding terminal is standard.; Shallow design for ease of installation.; Strap nickel-plated steel with integral ground.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed; Federal Spec Listed
