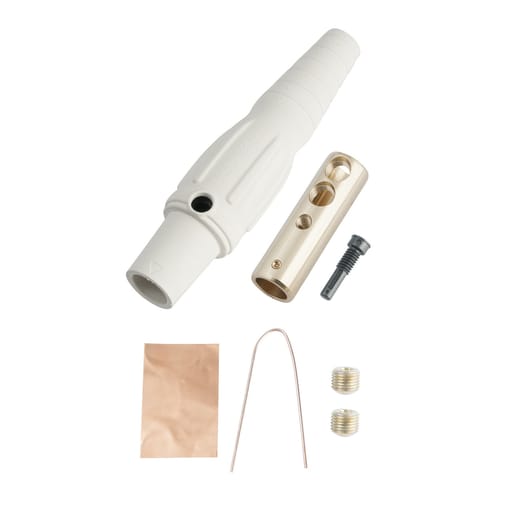

Pass & Seymour / Legrand - Pass & Seymour PS20-FBW Female Cam Device Plug, 400A 600V, Cable Size: #2-2/0 - White
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007308112
Amperage - 400 Amp
Applications - Commercial,Industrial
Catalog Number - PS20FBW
Color - White
Packaging
1 ea
EAN
00785007308112
Part #
311087
Catalog #
PS20-FBW
Commercial reference
PS20-FBW
12-Digit UPC:
785007308112
Amperage:
400 Amp
Applications:
Commercial,Industrial
Catalog Number:
PS20FBW
Color:
White
Conductor Size:
2-2/0 AWG
Country of Origin:
Mexico
ERP_productname:
PASS PS20-FBW 400A 600V CAM TYPE PLG SERIES 16 WH
Family Brand Name:
Legrand
Length:
6.8 Inch
Material:
Elastomer
NEMA Size:
3R,4
Number of Poles:
1 Pole
Size:
6.8 In
Sub Brand:
Pass & Seymour
Type:
Non-Reversing
Voltage:
600 Volt
Wire Size:
2-00 AWG
SoneparProductId:
SKU_US_53225892
400A 600V, Cable Size #2 - 2/0, Female Cam-Type Plug, Green Features: Thermoplastic elastomer housing for outstanding impact and chemical resistance; Exceptional seal for maintaining NEMA Type 3R and 4 integrity; Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product; Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity; Heavy-duty hex set screws allow greater termination torque; Copper wire provides quality strain relief; Copper shim bundles wire strands to reduce ''splaying.''
