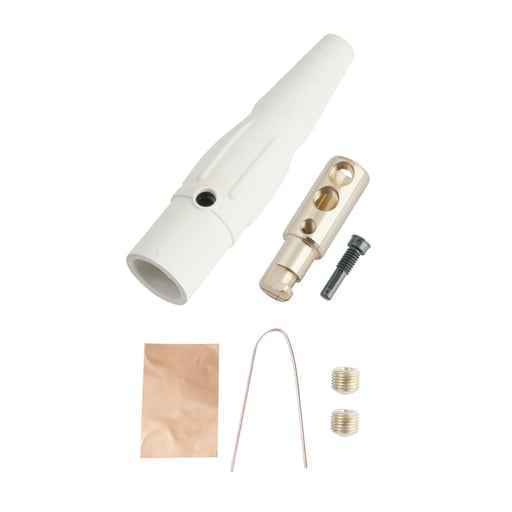

Pass & Seymour / Legrand - Pass & Seymour PS20-MBW Male Cam Device Plug, 400A 600V - White
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007308013
Amperage - 400 Amp
Applications - Commercial,Industrial
Catalog Number - PS20MBW
Color - White
Packaging
1 ea
EAN
00785007308013
Part #
351690
Catalog #
PS20-MBW
Commercial reference
PS20-MBW
12-Digit UPC:
785007308013
Amperage:
400 Amp
Applications:
Commercial,Industrial
Catalog Number:
PS20MBW
Color:
White
Conductor Size:
2-2/0 AWG
Country of Origin:
Mexico
ERP_productname:
PASS PS20-MBW 400A 600V MALE CAM TYPE PLUG WH
Family Brand Name:
Legrand
Length:
6-7/8 Inch
Material:
Elastomer
NEMA Size:
3R,4
Number of Poles:
1 Pole
Size:
6.875 In
Sub Brand:
Pass & Seymour
Type:
Non-Reversing
Voltage:
600 Volt
Wire Size:
2-00 AWG
SoneparProductId:
SKU_US_53225800
400A 600V M PLUG ORANGE #2-2/0 Features: Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity.; Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product.; Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity.; Heavy-duty hex set screws allow greater termination torque.
