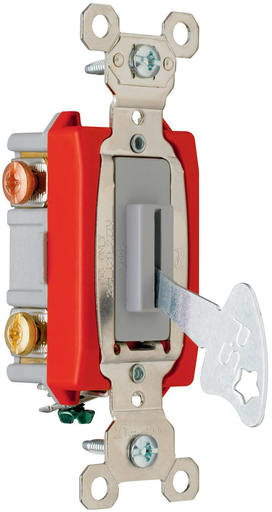

Pass & Seymour / Legrand - Pass & Seymour PS20AC3-L 3way Lock Switch, Back & Side Wire, 20A 120/277V - Gray
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007195637
Actuator - Toggle
Amperage - 20 Amp
Applications - Commercial,Residential
Catalog Number - PS20AC3L
Packaging
1 ea
EAN
00785007195637
Part #
151835
Catalog #
PS20AC3L
Commercial reference
PS20AC3L
12-Digit UPC:
785007195637
Actuator:
Toggle
Amperage:
20 Amp
Applications:
Commercial,Residential
Catalog Number:
PS20AC3L
Color:
Grey
Country of Origin:
Mexico
Depths:
1.073 Inch
ERP_productname:
PASS PS20AC3L 20A 120/277V
Family Brand Name:
Pass & Seymour
Finish:
Matte
Grade:
Industrial Specification
Heights:
3.281 Inch
Material:
Nylon
Number of Poles:
3 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Heavy Duty, 3-Way
Voltage:
120 Volt
Widths:
1.32 in
SoneparProductId:
SKU_US_26764809
3way Lock Switch, Back & Side Wire, 20amp 120/277volt, Ivory (Key can be removed in both positions) Features: External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.; Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.; Cam controls fast ''make'' and positive ''break'' to minimize arcing.; Heavy-duty bumper pads for quiet operation.; High strength thermoplastic polycarbonate toggle.; Back body made of glass-reinforced nylon.; Locking support provides resistance to face and back body separation.; Oversized silver alloy contacts for long life and better heat dissipation.; Grounding terminal is standard.; Shallow design for ease of installation.; Strap nickel-plated steel with integral ground.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed; Federal Spec Listed
