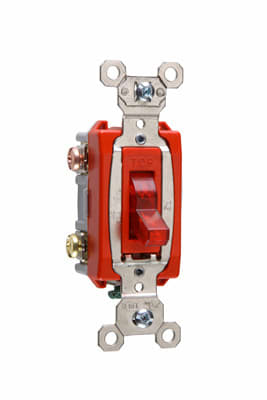

Pass & Seymour / Legrand - Pass & Seymour PS20AC3-RPL 3way Pilot Lighted Switch, Back & Side Wire, 20A 120V - Red
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007195880
Amperage - 20 Amp
Applications - Industrial
Catalog Number - PS20AC3RPL
Color - Red
Packaging
1 ea
EAN
00785007195880
Part #
128178
Catalog #
PS20AC3RPL
Commercial reference
PS20AC3RPL
12-Digit UPC:
785007195880
Amperage:
20 Amp
Applications:
Industrial
Catalog Number:
PS20AC3RPL
Color:
Red
Country of Origin:
Mexico
Depths:
1.09 Inch
ERP_productname:
PASS PS20AC3RPL 20A 120VAC B+S WIRE 3W PILOT RED
Family Brand Name:
Legrand
Finish:
Matte
Grade:
Industrial
Heights:
4.195 Inch
Number of Poles:
3 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Pilot Lighted
Voltage:
120 Volt
Wattage:
3 Watt
Widths:
1.25 in
SoneparProductId:
SKU_US_26320506
Industrial Extra Heavy Duty Specification Grade Switch, 3-Way Pilot Lighted Switch, Lighted When On, Back and Side Wire, Red, 20A 120 Volt Certifications: cULus Listed; Federal Spec Listed - Features: External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.; Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.; Cam controls fast ''make'' and positive ''break'' to minimize arcing.; Heavy-duty bumper pads for quiet operation.; High strength thermoplastic polycarbonate toggle.; Back body made of glass-reinforced nylon.; Locking support provides resistance to face and back body separation.; Oversized silver alloy contacts for long life and better heat dissipation.; Grounding terminal is standard.; Shallow design for ease of installation.; Strap nickel-plated steel with integral ground.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
