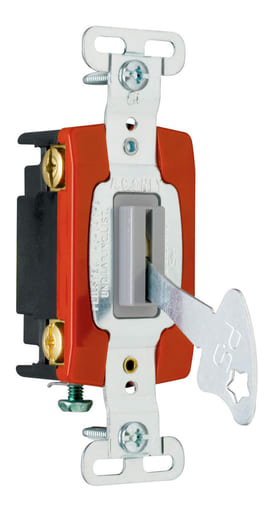

Pass & Seymour / Legrand - Pass & Seymour PS20AC4-L 4way Lock Switch, Back & Side Wire, 20A 120/277V - Gray
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007195644
Actuator - Toggle Switch
Amperage - 20 Amp
Applications - Commercial,Residential
Catalog Number - PS20AC4L
Packaging
1 ea
EAN
00785007195644
Part #
152056
Catalog #
PS20AC4L
Commercial reference
PS20AC4L
12-Digit UPC:
785007195644
Actuator:
Toggle Switch
Amperage:
20 Amp
Applications:
Commercial,Residential
Catalog Number:
PS20AC4L
Color:
Gray
Country of Origin:
Mexico
Depths:
1.073 Inch
ERP_productname:
PASS PS20AC4L
Family Brand Name:
Legrand
Finish:
Matte
Grade:
Industrial
Heights:
3.281 Inch
Number of Poles:
4 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Lock Key
Voltage:
120 Volt
Widths:
1.32 in
SoneparProductId:
SKU_US_26769197
4way Lock Switch, Back & Side Wire, 20amp 120/277volt, Light Almond Features: External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.; Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.; Cam controls fast ''make'' and positive ''break'' to minimize arcing.; Heavy-duty bumper pads for quiet operation.; High strength thermoplastic polycarbonate toggle.; Back body made of glass-reinforced nylon.; Locking support provides resistance to face and back body separation.; Oversized silver alloy contacts for long life and better heat dissipation.; Grounding terminal is standard.; Shallow design for ease of installation.; Strap nickel-plated steel with integral ground.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: Federal Spec Listed; CSA Listed; cULus Listed; UL Listed
