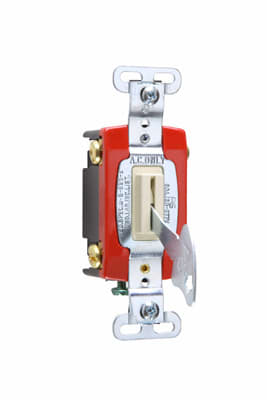

Pass & Seymour / Legrand - Pass & Seymour PS20AC4-LAL 4way Lock Switch, Back & Side Wire, 20A 120/277V - Light Almond
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007266795
Amperage - 20 Amp
Applications - Industrial
Catalog Number - PS20AC4LAL
Color - Almond
Packaging
1 ea
EAN
00785007266795
Part #
145121
Catalog #
PS20AC4LAL
Commercial reference
PS20AC4LAL
12-Digit UPC:
785007266795
Amperage:
20 Amp
Applications:
Industrial
Catalog Number:
PS20AC4LAL
Color:
Almond
Country of Origin:
Mexico
Depths:
1.073 Inch
ERP_productname:
PASS PS20AC4LAL 20A 120/277VAC B+S WIRE 4W LOCK SW LA
Family Brand Name:
Legrand
Finish:
Matte
Grade:
Industrial
Heights:
3.281 Inch
Number of Poles:
4 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Lock Key
Voltage:
120 Volt
Wattage:
4 Watt
Widths:
1.320 in
SoneparProductId:
SKU_US_52882088
4way Lock Switch, Back & Side Wire, 20amp 120/277volt, Light Almond Certifications: Federal Spec Listed; UL Listed; CSA Listed; cULus Listed - Features: External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.; Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.; Cam controls fast ''make'' and positive ''break'' to minimize arcing.; Heavy-duty bumper pads for quiet operation.; High strength thermoplastic polycarbonate toggle.; Back body made of glass-reinforced nylon.; Locking support provides resistance to face and back body separation.; Oversized silver alloy contacts for long life and better heat dissipation.; Grounding terminal is standard.; Shallow design for ease of installation.; Strap nickel-plated steel with integral ground.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
