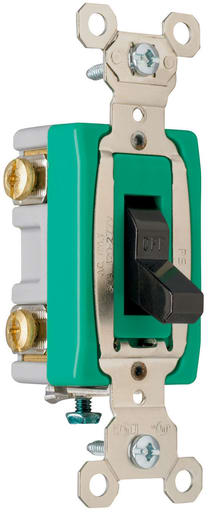

Pass & Seymour / Legrand - Pass & Seymour PS30AC2-HP 30 Amp 120/277 VAC 2-Pole 1-Phase AC Manual Motor Starting Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007195972
Actuator - Toggle
Amperage - 30 Amp
Applications - Industrial
Catalog Number - PS30AC2HP
Packaging
1 ea
EAN
00785007195972
Part #
269615
Catalog #
PS30AC2-HP
Commercial reference
PS30AC2-HP
12-Digit UPC:
785007195972
Actuator:
Toggle
Amperage:
30 Amp
Applications:
Industrial
Catalog Number:
PS30AC2HP
Color:
Brown
Country of Origin:
Mexico
Depths:
1.073 Inch
ERP_productname:
PASS PS30AC2-HP 30A 120-277VAC B+S WIRE HP RATED
Family Brand Name:
Pass & Seymour
Finish:
Matte
Grade:
Industrial
Heights:
3.281 Inch
Number of Poles:
2 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
2 Position
Voltage:
120 Volt
Wattage:
2 Watt
Widths:
1.32 in
SoneparProductId:
SKU_US_26594811
Double-Pole, Single Phase Switch, Back and Side-Wire, HP Rated. 30A, 277V. Features: High horsepower rating, up to 3HP for heavy-duty applications. Compact design provides ease of installation. Single piece moveable and stationary contact arms with oversized silver cadmium buttons provides excellent continuity and long life.; Made in USA. Box lug terminals. Wire pockets and thick wall arc barriers. Cold-rolled steel NEMA 3R enclosure with polyester urethane finish conforms to OSHA lockout requirements.; Type 3R enclosure has 2-1/2 inch, 3/4 inch, and 1 inch concentric knockouts on bottom. Accepts #4 AWG. cULus listed.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed; Federal Spec Listed
