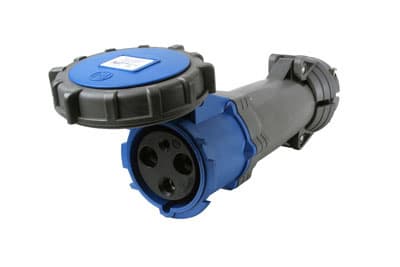

Pass & Seymour / Legrand - Pass & Seymour PS3100C6-W Pin & Sleeve Connector, 2pole 3wire, 100A 250V
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007031058
Amperage - 100 Amp
Applications - Commercial
Buy American - Y
Catalog Number - PS3100C6W
Packaging
1 ea
EAN
00785007031058
Part #
498395
Catalog #
PS3100C6W
Commercial reference
PS3100C6W
12-Digit UPC:
785007031058
Amperage:
100 Amp
Applications:
Commercial
Buy American:
Y
Catalog Number:
PS3100C6W
Color:
Gray
Country of Origin:
USA
ERP_productname:
ONQ PS3100C6-W P/S CONN 3W 100A 250V WT
Family Brand Name:
Legrand
Heights:
5.3 Inch
Length:
14.3 Inch
Material:
Thermoplastic
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
5.8"
Sub Brand:
Pass & Seymour
Type:
Pin & Sleeve North American Watertight Connector
Voltage:
250 Volt
Widths:
5.2 in
SoneparProductId:
SKU_US_53256672
Double pole, Three wire, Pin and Sleeve Connector. 100 amp, 250 volt. Features: Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.; Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.; Nylon construction for highimpact and corrosion resistance.; Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.; Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.; Natural-rubber grommets provide watertight protection at cable entry.; Combination-head screws for added convenience and quick installation.; Revolutionary, hinged cord grip for durable performance and ease of installation.; Cover with integral neoprene gasket provides watertight seal. - Certifications: cULus Listed
