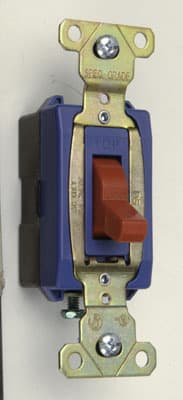

Pass & Seymour / Legrand - Pass & Seymour PS371510-RED Canadian 1pole Switch, Back & Side Wire, 15A 347V - Red
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007196054
Actuator - Toggle
Amperage - 15 Amp
Applications - For Commercial and Residential
Catalog Number - PS371510RED
Packaging
1 ea
EAN
00785007196054
Part #
210818
Catalog #
PS371510-RED
Commercial reference
PS371510-RED
12-Digit UPC:
785007196054
Actuator:
Toggle
Amperage:
15 Amp
Applications:
For Commercial and Residential
Catalog Number:
PS371510RED
Color:
Red
Country of Origin:
Mexico
Depths:
1.073 Inch
ERP_productname:
PASS PS371510-RED 15A 347VAC B&S WIRE CN SP SW
Family Brand Name:
Pass & Seymour
Finish:
Matte
Grade:
Industrial
Heights:
3.531 Inch
Number of Poles:
1 Pole
Size:
4.6x2.5x2.4
Sub Brand:
Pass & Seymour
Type:
Toggle
Voltage:
347 Volt
Widths:
1.320 in
SoneparProductId:
SKU_US_71901689
Canadian 1pole Switch, Back & Side Wire, 15amp 347volt, White Features: External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.; Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.; Cam controls fast ''make'' and positive ''break'' to minimize arcing.; Heavy-duty bumper pads for quiet operation.; High strength thermoplastic polycarbonate toggle.; Back body made of glass-reinforced nylon.; Locking support provides resistance to face and back body separation.; Oversized silver alloy contacts for long life and better heat dissipation.; Grounding terminal is standard.; Shallow design for ease of installation.; Strap nickel-plated steel with integral ground.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
